Installation Procedure
Master Cylinder (1) - Install
- CAUTION:
Refer to Fastener Caution .

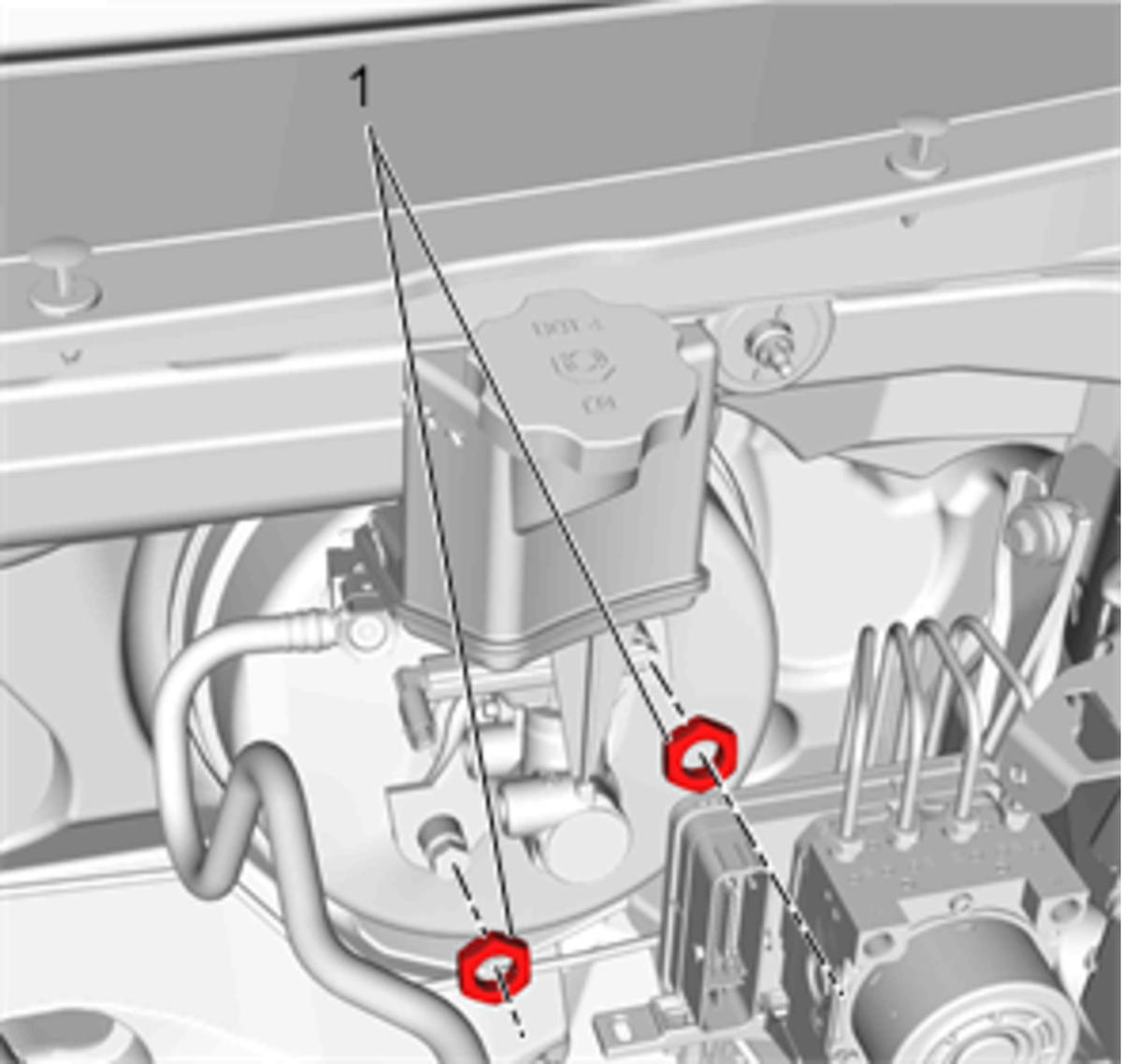

Master Cylinder Nut (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)
Brake Pressure Modulator Valve Primary Pipe Fitting (1) - Install and tighten 25 N.m (18 lb-ft)
Brake Pressure Modulator Valve Secondary Pipe Fitting (1) - Install and tighten 25 N.m (18 lb-ft)

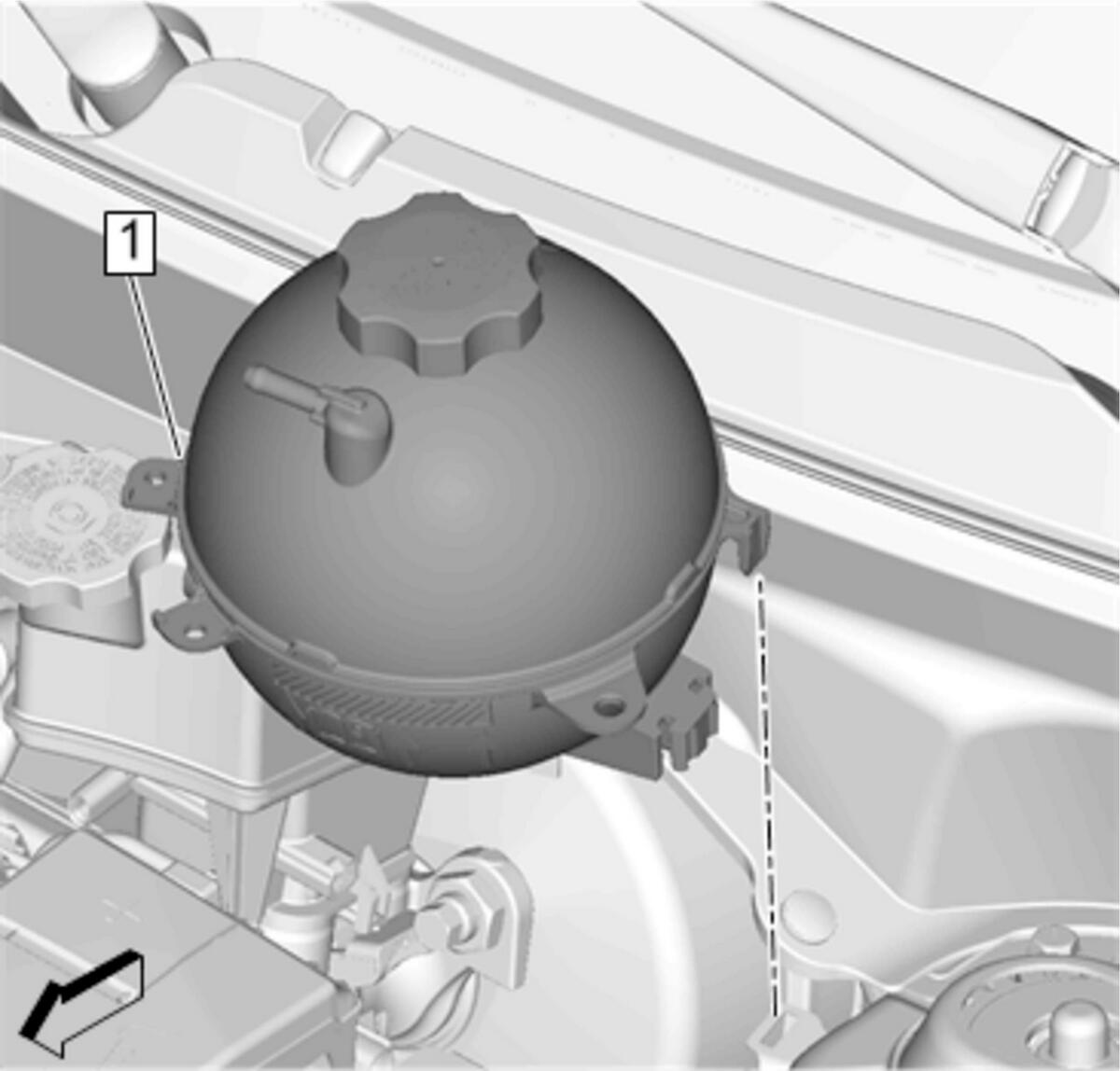

Radiator Surge Tank (1) - Install - Radiator Surge Tank Replacement (LYX without KL9) , or Radiator Surge Tank Replacement (LTG LYX with KL9)
Brake Fluid Level Indicator Switch Electrical Connector (1) - Connect
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
