Installation Procedure

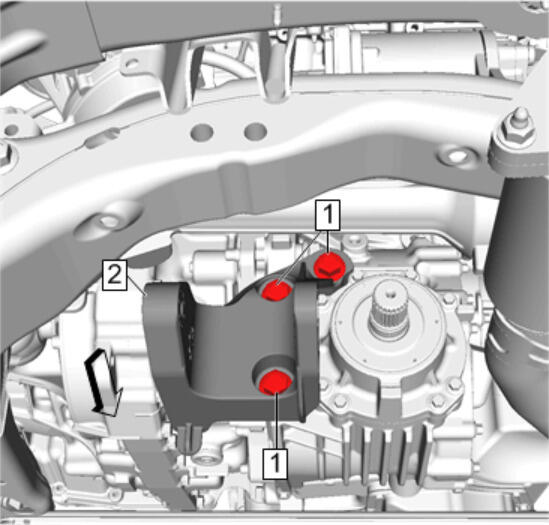

  1. Install the three NEW transmission mount bracket to transmission bolts (1) and tighten to 100 N.m (74 lb ft) plus 45 to 60 degrees.
    GM4287556Courtesy of GENERAL MOTORS COMPANY

    Position the transmission mount bracket (2) to the transmission.

    CAUTION:

    Refer to Fastener Caution .

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  2. Install the transmission mount strut. Transmission Mount Strut Replacement
