Installation Procedure

  1. Control Valve Body Cover (3) - Install - Control Valve Body Cover Installation
    Fig 1: Control Valve Body Cover Bolts Tightening Sequence
    GM4376124Courtesy of GENERAL MOTORS COMPANY
  2. Electrical Connector (1) - Connect
    GM4674675Courtesy of GENERAL MOTORS COMPANY
  3. Position the transmission wiring harness with brackets (3) as necessary.

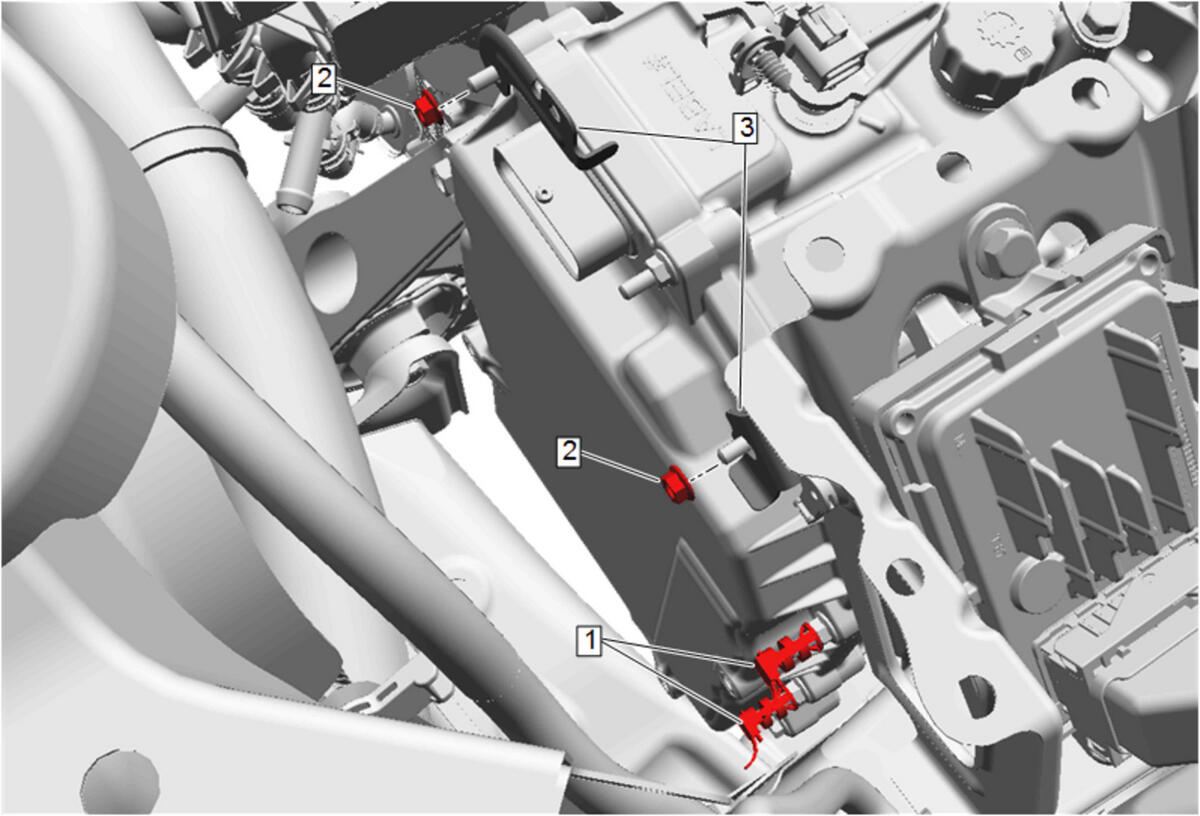

    GM5342134Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Wiring harness not shown for graphic clarity.

    4. CAUTION:

    Refer to Fastener Caution .

  4. Engine Wiring Harness Transmission Clip Nut (2) - Install and tighten [2x] 9 N.m (80 lb in)
  5. Wiring Harness Retainer (1) - Install [2x]
  6. Battery Tray - Install - Battery Tray Replacement
  7. Fill the transmission to the proper level with NEW transmission fluid.
