Heater Outlet Hose Replacement (LGX without C69 Heater Outlet Hose Connector to Radiator Surge Tank)

Courtesy of GENERAL MOTORS COMPANY

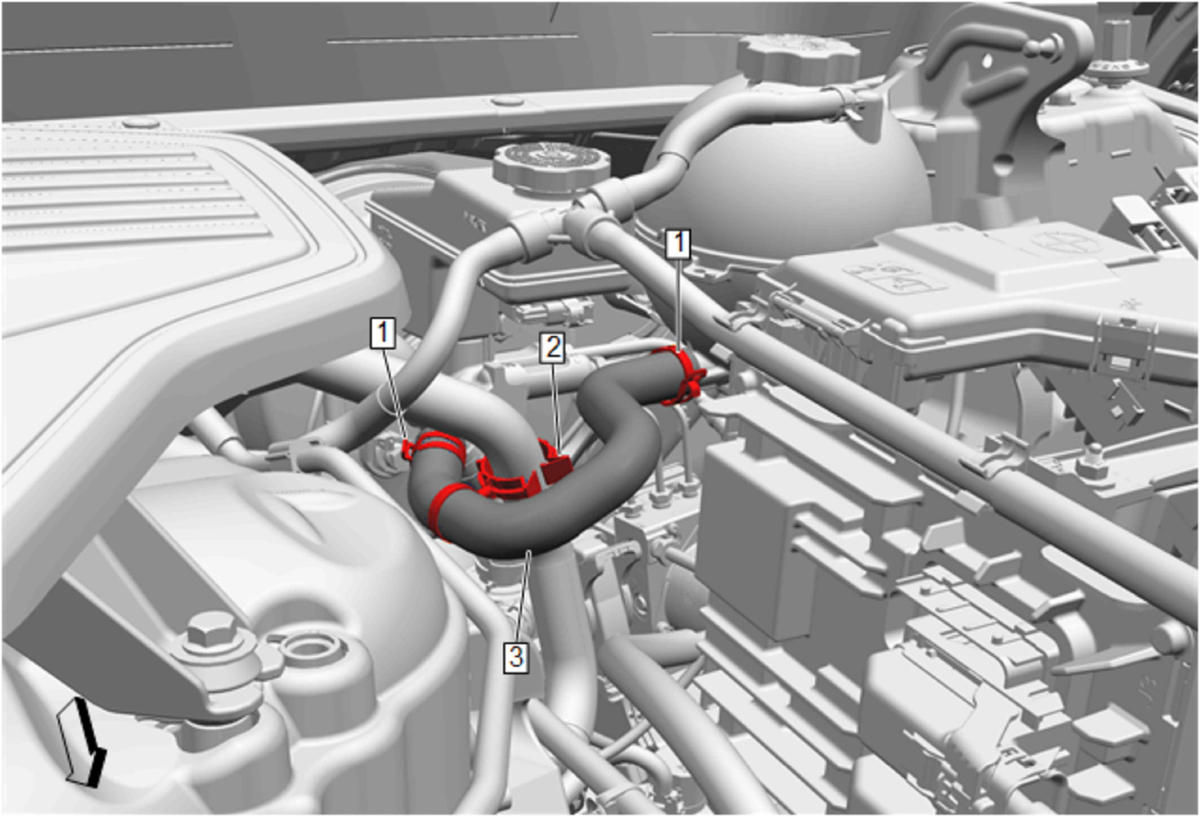

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (Static Fill LCV, LGX) , or Cooling System Draining and Filling (GE-47716 LCV, LGX)
1	Heater Outlet Hose Clamp [2x] Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Heater Outlet Hose Clip
3	Heater Outlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LCV, LGX) , or Cooling System Draining and Filling (GE-47716 LCV, LGX) Start the engine and check for coolant leaks.
