Intake Air Splash Shield Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

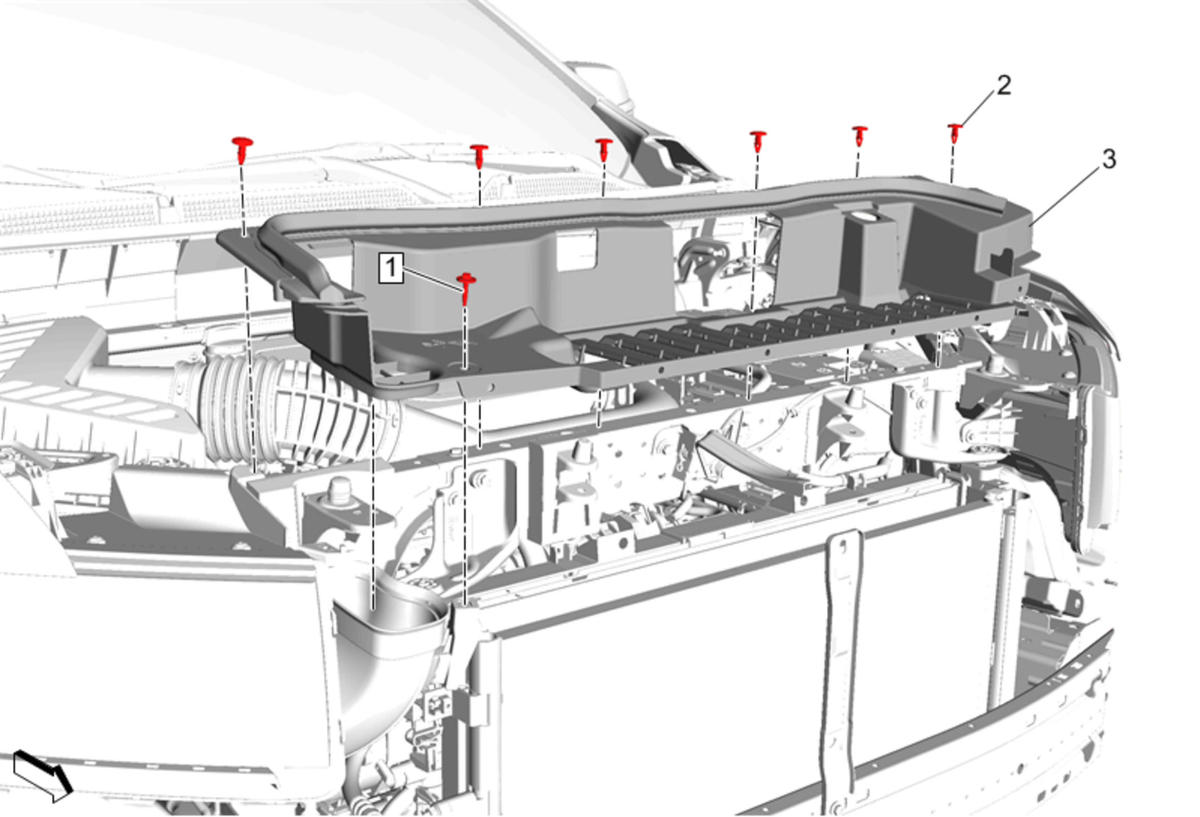

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Center Support Replacement - Upper |
|
| 1 | Intake Air Duct Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Intake Air Splash Shield Retainer [6x] |
| 3 | Intake Air Splash Shield |
