Front Wheelhouse Liner Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

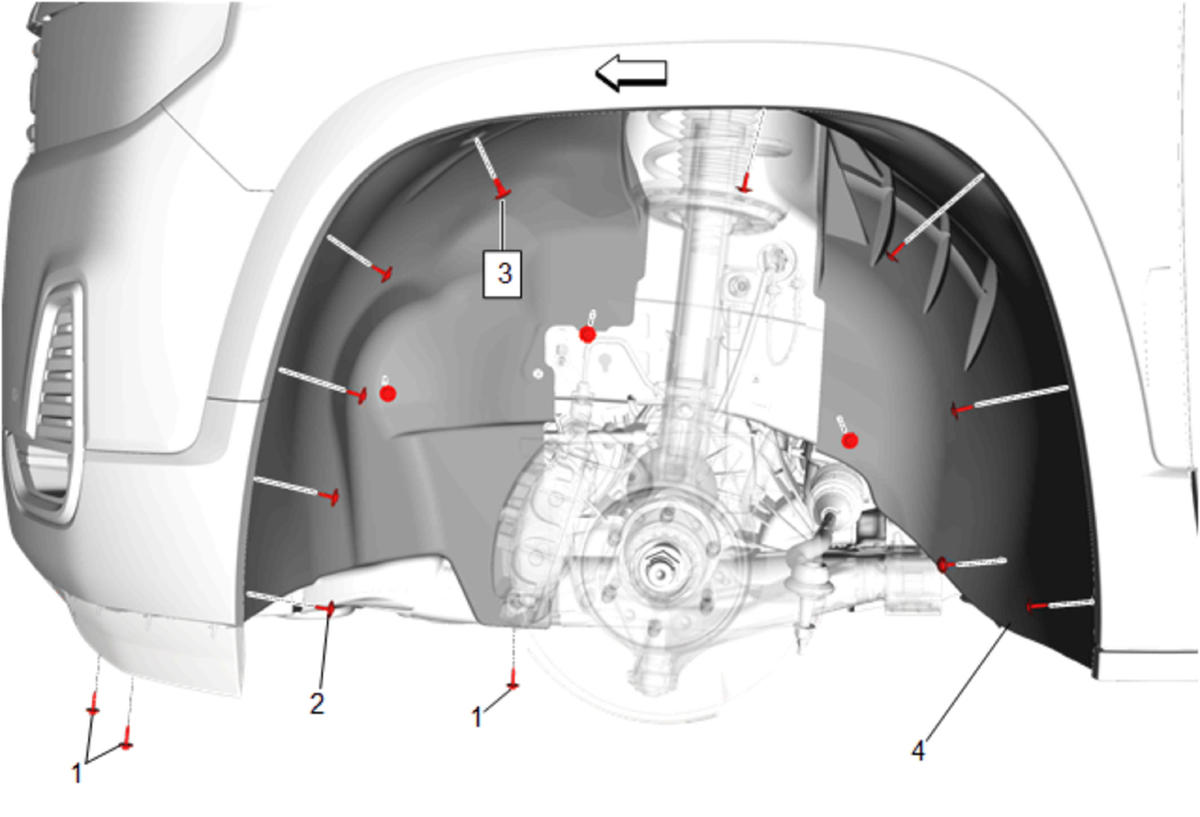

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Splash Shield Replacement |
|
| 1 | Front Wheelhouse Liner Bolt [3x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Front Wheelhouse Liner Bolt [12x] Tighten 2.5 N.m (22 lb in) |
| 3 | Retainer |
| 4 | Front Wheelhouse Liner |
