Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Using the outline made by the spray paint or marker, position the transmission mount to the drivetrain and front suspension cradle.
- CAUTION:
Refer to Fastener Caution .
CAUTION:Refer to Torque-to-Yield Fastener Caution .
Install the NEW transmission rear mount bolts (2) and nuts and tighten the bolts to 100 N.m (74 lb ft) plus 95 to 105 degrees.
- Install the transmission mount to bracket through bolt (1) and tighten to 100 N.m (74 lb ft).

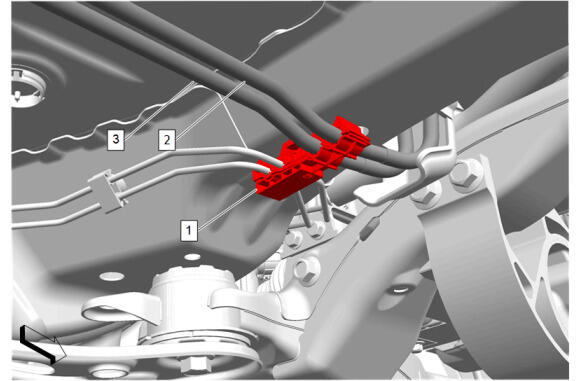

Fuel Feed Pipe (3) - Install
- Evaporative Emission Front Pipe (2) - Install
- Front Brake and Fuel Feed Front and Evaporative Emission Pipe Clip (1) - Install
- Remove the jack stand.
- Lower the vehicle.
