Transmission Control Module Bracket Replacement
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

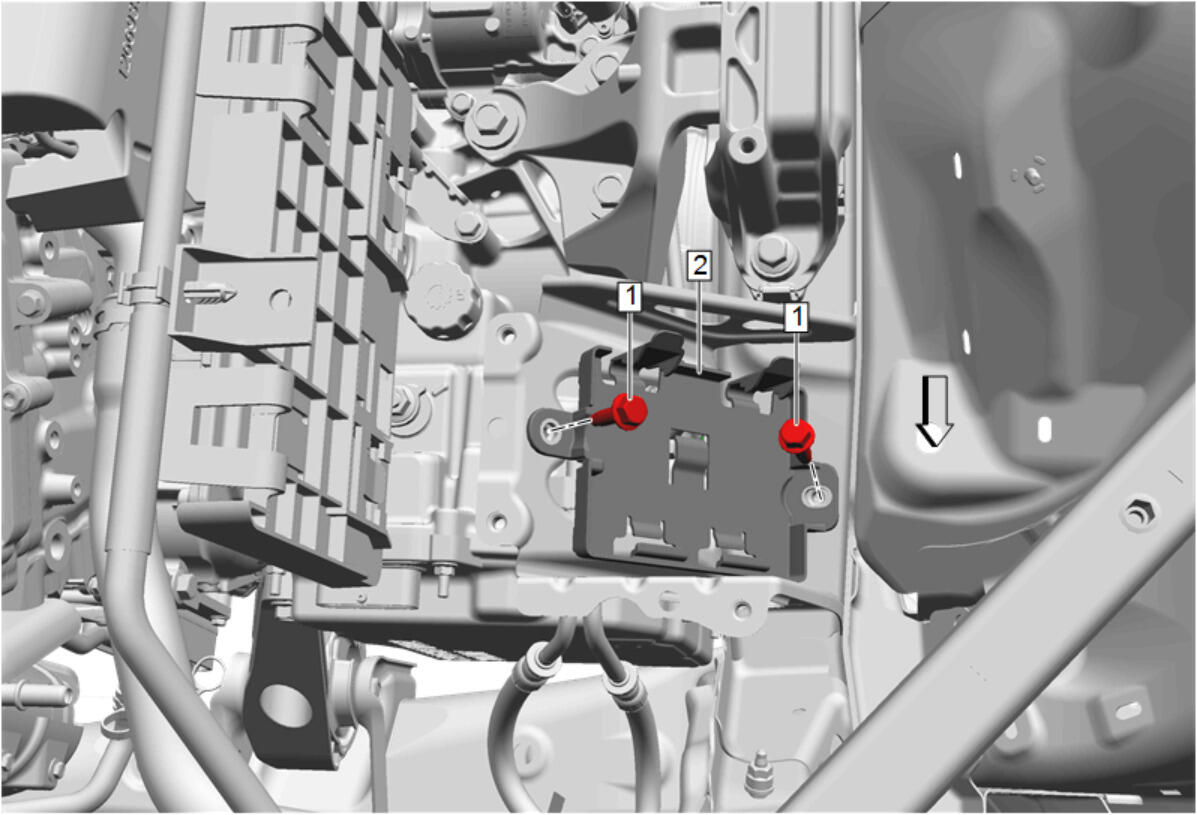

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Transmission Control Module Replacement |
|
| 1 | Transmission Control Module Bracket Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Transmission Control Module Bracket |
