Removal Procedure

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

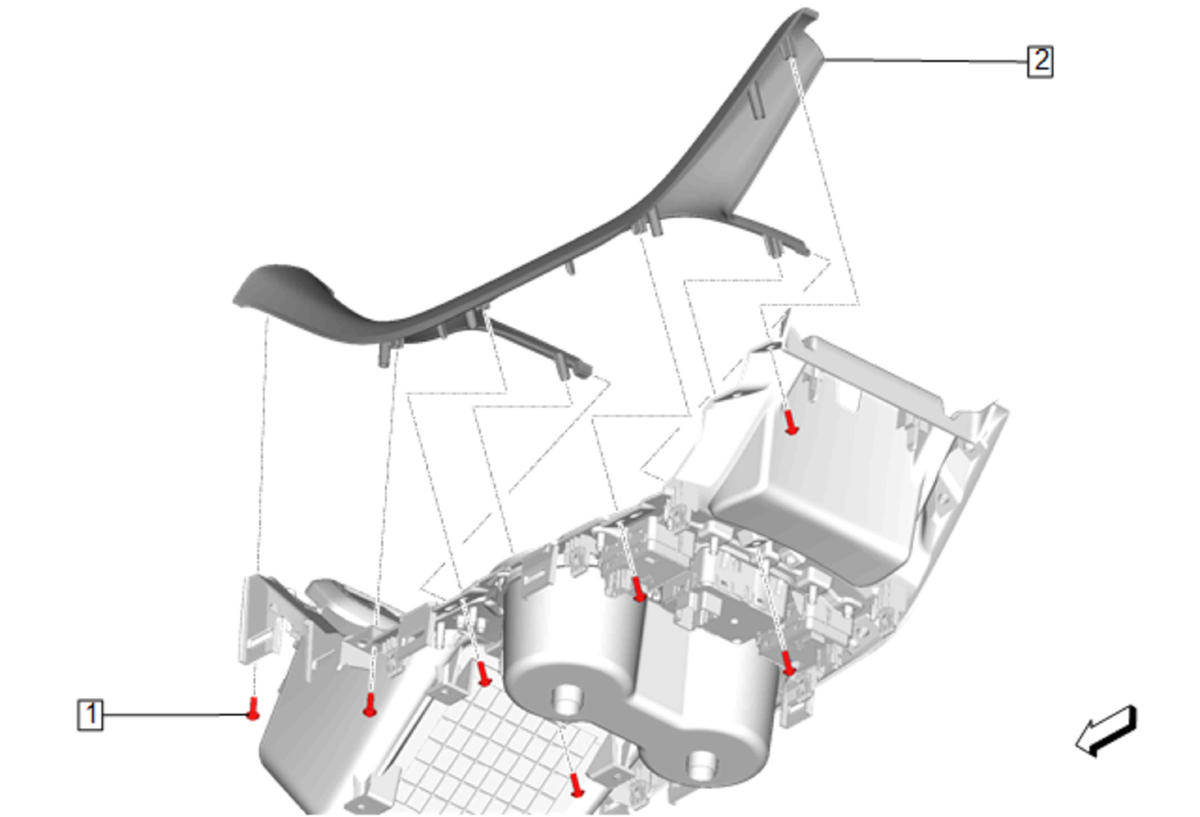

  1. GM5354792Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique-Left Side (2) - Remove - Front Floor Console Applique Replacement - Left Side

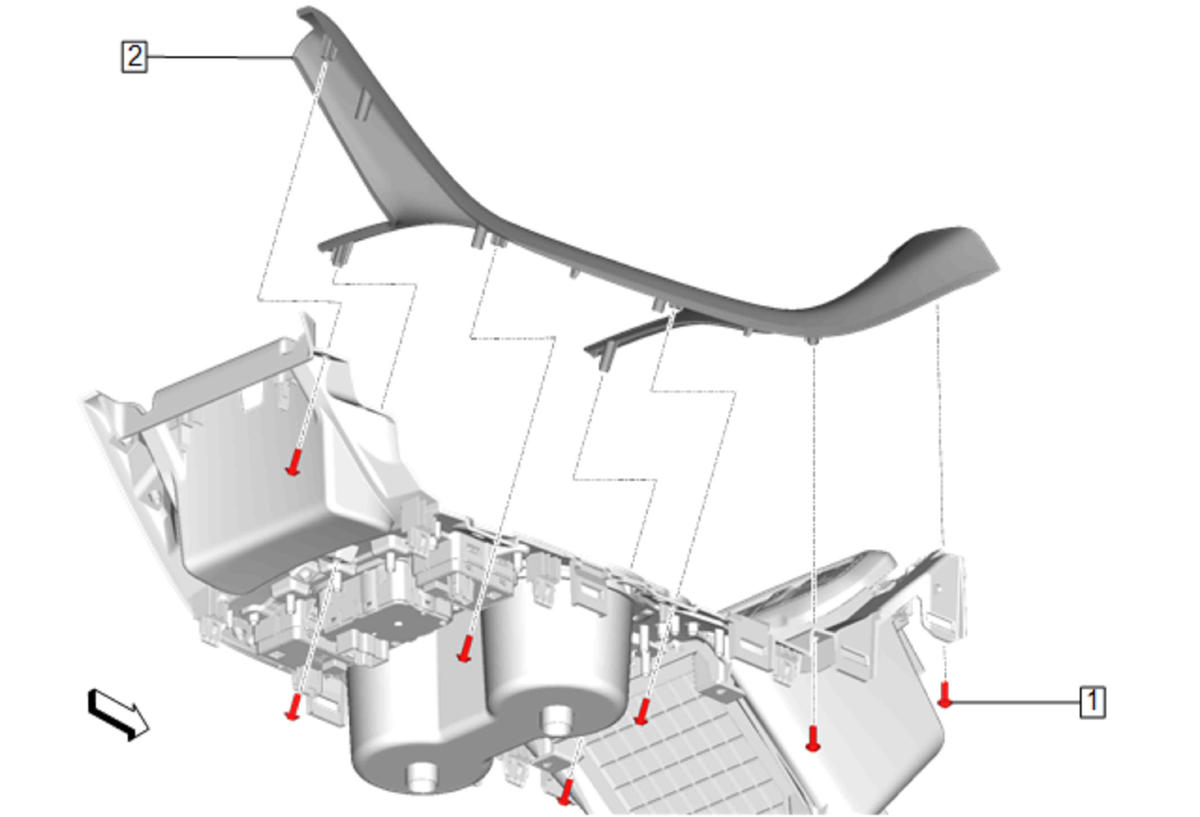

  2. GM5354794Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique-Right Side (2) - Remove - Front Floor Console Applique Replacement - Right Side

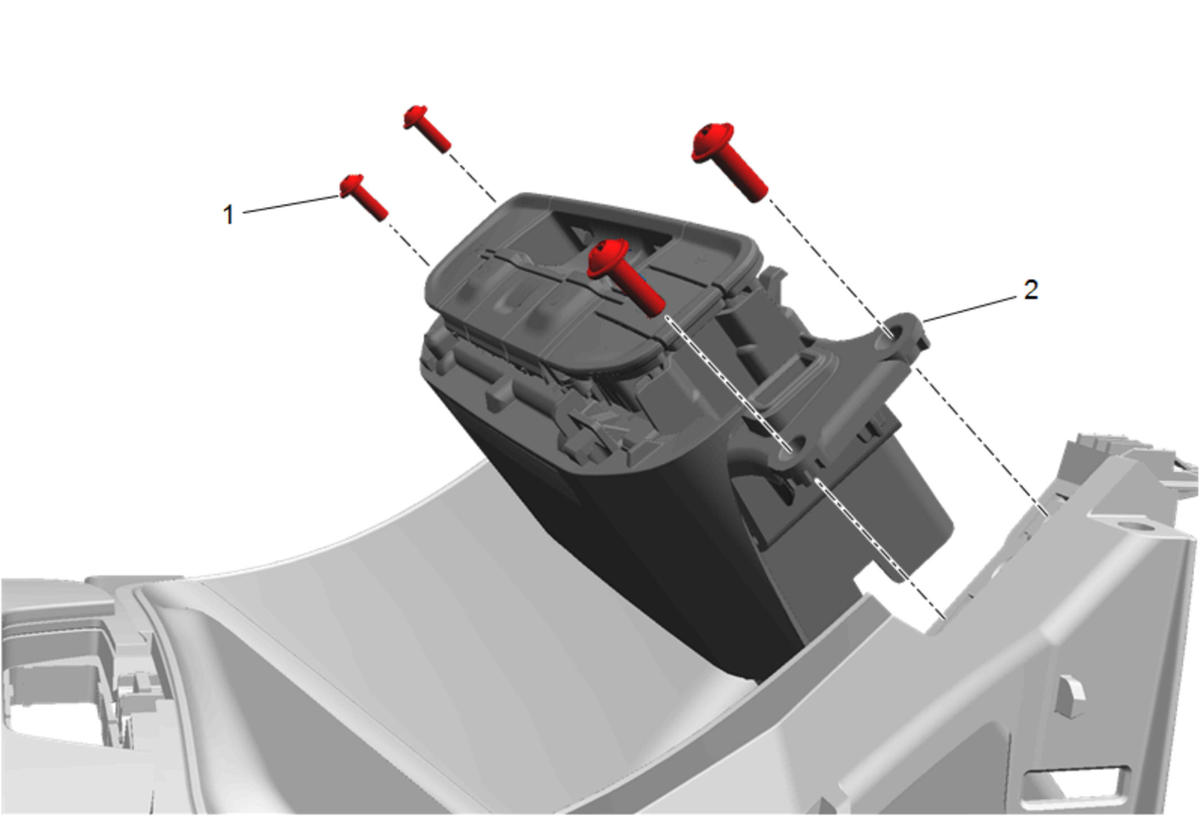

  3. GM5393780Courtesy of GENERAL MOTORS COMPANY

    Electronic Transmission Shift Control Pushbutton Bolt (1) - Remove [4x]

  4. Electronic Transmission Shift Control Pushbutton (2) - Remove
