Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Install the auxiliary fluid accumulator (6) to the transmission. Auxiliary Fluid Accumulator Installation
- Connect the auxiliary fluid accumulator electrical connector.

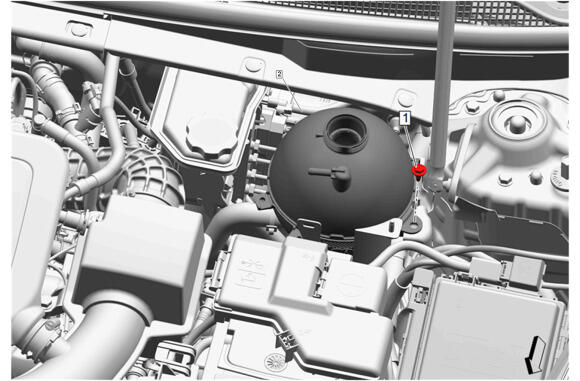

Radiator Surge Tank (2) - Install
- Radiator Surge Tank Bolt (1) - Install and tighten - Radiator Surge Tank Replacement (LGX without C69) , or Radiator Surge Tank Replacement (LSY) , or Radiator Surge Tank Replacement (LGX with C69)
- Check the transmission fluid level. Transmission Fluid Level and Condition Check
CAUTION:
Refer to Fastener Caution .
NOTE:
Refer to the procedure link for torque specification.
