X700 Left Rear Door Harness to Body Harness (GMC)

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

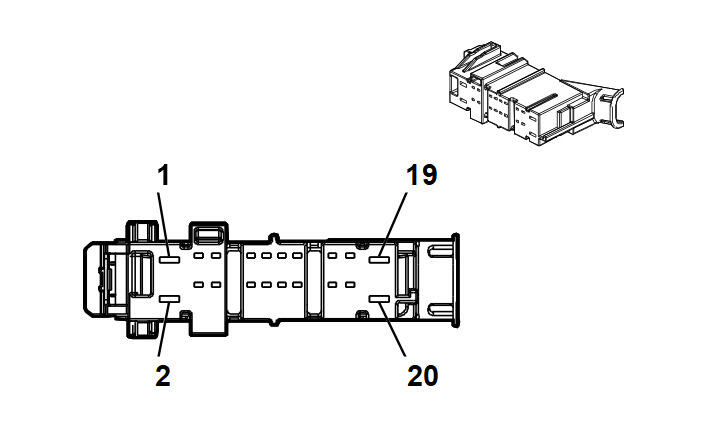

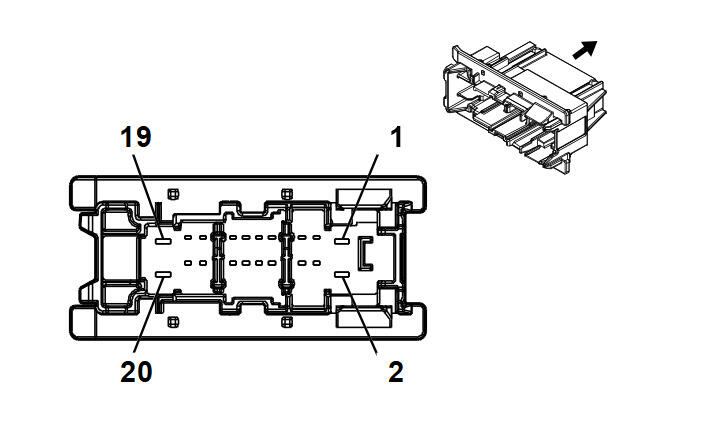

Connector Part Information Harness Type:Left Rear Door OEM Connector: 13509582 Service Connector: Service by Harness - See Part Catalog Description: 20 -Way F 1.2 MCON, 2.8 MCP Series (BK)	Connector Part Information Harness Type:Body OEM Connector: 6098-8192 Service Connector: 13527239 Description: 20 -Way M 1.2 MCON, 2.8 MCP Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (LT GN)	No Tool Required
II	Not required	J-35616-35 (VT)	No Tool Required
III	19370818	J-35616-17 (LT GN)	J-38125-215A
IV	84616651	J-35616-17 (LT GN)	J-38125-215A

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1 - 2	-	-	-	-	-	Not Occupied	1 - 2	-	-	-	-	-
3	0.75	BN/YE	294	I	-	Door Lock Actuator Unlock Control	3	0.75	BN/YE	294	III	-
4	0.75	GY	295	I	-	Door Lock Actuator Lock Control	4	0.75	GY	295	III	-
5 - 6	-	-	-	-	-	Not Occupied	5 - 6	-	-	-	-	-
7	0.5	BN/YE	6157	I	-	Left Rear Door Handle Switch Signal	7	0.35	BN/YE	6157	IV	-
8	-	-	-	-	-	Not Occupied	8	-	-	-	-	-
9	0.35	GN/GY	6135	I	-	Body Control Module LIN Bus 4	9	0.35	GN/GY	6135	IV	-
10 - 15	-	-	-	-	-	Not Occupied	10 - 15	-	-	-	-	-
16	0.35	WH/YE	7557	I	-	Interior Door Handle Accent Lighting Control	16	0.35	WH/YE	7557	IV	-
17	1	GN/BK	116	I	UQA	Left Rear Speaker Signal (-) Left Rear Speaker Signal (-)	17	0.75 1	GN/BK GN/BK	116 116	III III	IOR UQA
18	1	GN	199	I	UQA	Left Rear Speaker [+] Control Left Rear Speaker [+] Control	18	0.75 1	GN GN	199 199	III III	IOR UQA
19 - 20	-	-	-	-	-	Not Occupied	19 - 20	-	-	-	-	-
