X510 Driver Outside Rearview Mirror Harness to Driver Door Harness (LHD)
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

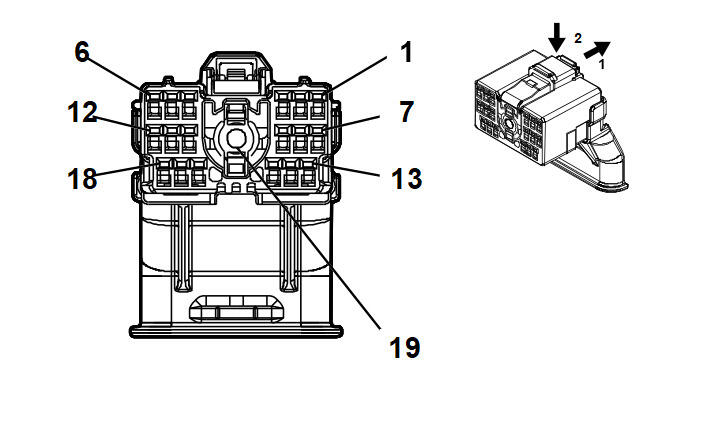

Connector Part Information
- Harness Type:Driver Outside Rearview Mirror
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 19 -Way F (BK)
|
Connector Part Information
- Harness Type:Driver Door
- OEM Connector: 13518414
- Service Connector: Service by Harness - See Part Catalog
- Description: 19 -Way M 1.2 MCON, Coaxial Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-12 (BU) |
No Tool Required |
| II |
Not required |
J-35616-13 (BU) |
No Tool Required |
| III |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN/BK |
3389 |
I |
- |
Driver Mirror Motor Right (+) Left (-) Control |
1 |
0.35 |
BN/BK |
3389 |
II |
- |
| 2 |
0.35 |
VT/BU |
3390 |
I |
- |
Driver Mirror Motor Up (+) Down (-) Control |
2 |
0.35 |
VT/BU |
3390 |
II |
- |
| 3 |
0.5 |
WH/GN |
3412 |
I |
AAB+DYX |
Driver Mirror Motor Fold In Control |
3 |
0.5 |
WH/GN |
3412 |
II |
AAB+DYX |
| 4 |
0.35 |
GY/YE |
5853 |
I |
UKC |
Driver Side Object Detection LED Signal 1 |
4 |
0.35 |
GY/YE |
5853 |
II |
UKC |
| 5 |
- |
- |
- |
- |
- |
Not Occupied |
5 |
- |
- |
- |
- |
- |
| 6 |
0.35 |
WH/YE |
3395 |
I |
AAB+DYX |
Driver Mirror Position Sensor Left (-) Right (+) Signal |
6 |
0.35 |
WH/YE |
3395 |
II |
AAB+DYX |
| 7 |
0.5 |
BN/YE |
2267 |
I |
- |
Mirror Heating Element Control |
7 |
0.5 |
BN/YE |
2267 |
II |
- |
| 8 |
0.5 |
BU/WH |
1314 |
I |
- |
Left Front Turn Signal Lamp Control |
8 |
0.5 |
BU/WH |
1314 |
II |
- |
| 9 |
0.5 |
BK |
750 |
I |
- |
Ground |
9 |
0.5 |
BK |
750 |
II |
- |
| 10 |
0.35 |
VT/RD |
3392 |
I |
AAB+DYX |
Driver Mirror Position Sensor 5V Reference |
10 |
0.35 |
VT/RD |
3392 |
II |
AAB+DYX |
| 11 |
0.35 |
GY/BN |
3394 |
I |
AAB+DYX |
Driver Mirror Position Sensor Up (+) Down (-) Signal |
11 |
0.35 |
GY/BN |
3394 |
II |
AAB+DYX |
| 12 |
0.35 |
BK/YE |
1691 |
I |
DD8 |
Automatic Day/Night Mirror Low Reference |
12 |
0.35 |
BK/YE |
1691 |
II |
DD8 |
| 13 |
- |
- |
- |
- |
- |
Not Occupied |
13 |
- |
- |
- |
- |
- |
| 14 |
0.35 |
YE/BN |
3391 |
I |
- |
Driver Mirror Motor Common Control |
14 |
0.35 |
YE/BN |
3391 |
II |
- |
| 15 |
0.5 |
GY/WH |
3411 |
I |
AAB+DYX |
Driver Mirror Motor Fold Out Control |
15 |
0.5 |
GY/WH |
3411 |
II |
AAB+DYX |
| 16 |
- |
- |
- |
- |
- |
Not Occupied |
16 |
- |
- |
- |
- |
- |
| 17 |
0.35 |
YE/WH |
1690 |
I |
DD8 |
Automatic Day/Night Mirror Signal |
17 |
0.35 |
YE/WH |
1690 |
II |
DD8 |
| 18 |
0.35 |
BK/BN |
3393 |
I |
AAB+DYX |
Driver Mirror Position Sensor Low Reference |
18 |
0.35 |
BK/BN |
3393 |
II |
AAB+DYX |
| 19 |
- |
- |
- |
- |
- |
Not Occupied |
19 |
- |
- |
- |
- |
- |
| 19C |
0 |
Coax Cable |
2628 |
I |
- |
Left Side Vision Camera Video Signal (+) |
19C |
0 |
WH/GN |
2628 |
III |
- |
| 19S |
0 |
Coax Cable |
2625 |
I |
- |
Left Side Vision Camera Video Signal (-) |
19S |
0 |
Coax Cable |
2625 |
III |
- |
