X104 Body Harness to Forward Lamp Harness (GMC)
WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

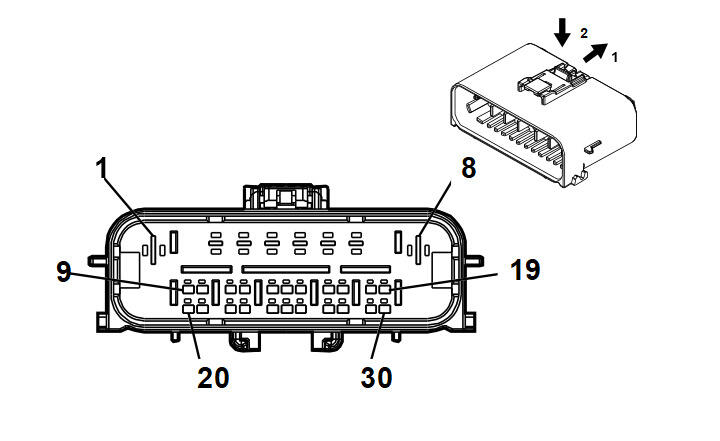

Connector Part Information
- Harness Type: Body
- OEM Connector: 13515616
- Service Connector: 19368311
- Description: 30 <p01>-Way F 1.2 MCON, 2.8, 6.3 MCP Series, Sealed (BK)
|

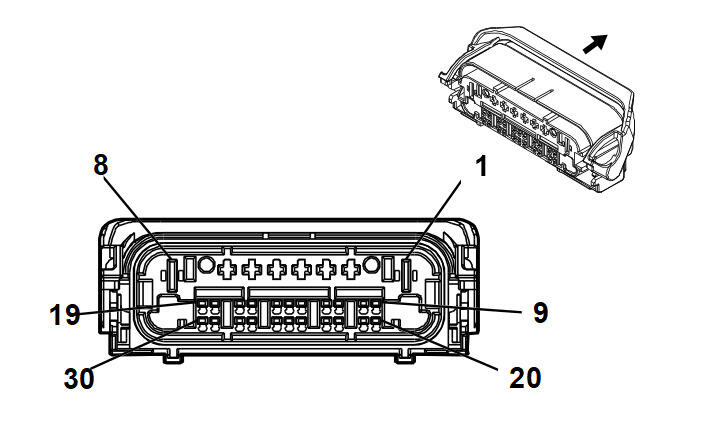

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 2301461-1
- Service Connector: 19371177
- Description: 30 <p01>-Way M 1.2 MCON-CB, 2.8 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13582289 |
J-35616-16 (LT GN) |
J-38125-11A |
| II |
19300440 |
J-35616-4A (PU) |
J-38125-557 |
| III |
19301775 |
J-35616-40 (BU) |
J-38125-556 |
| IV |
13575350 |
J-35616-5 (PU) |
J-38125-36 |
| V |
19300651 |
J-35616-43 (RD) |
J-38125-557 |
| VI |
19330703 |
J-35616-17 (LT GN) |
J-38125-215A |
| VII |
19330704 |
J-35616-13 (BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.5 |
GY/BN |
309 |
II |
- |
Right Park Lamp Control |
2 |
0.5 |
GY/BN |
309 |
IV |
- |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
| 5 |
0.5 |
GN/VT |
1315 |
II |
- |
Right Front Turn Signal Lamp Control |
5 |
0.5 |
GN/VT |
1315 |
IV |
- |
| 6 |
- |
- |
- |
- |
- |
Battery Positive Voltage |
6 |
0.5 |
RD/BN |
4940 |
IV |
UGN |
| 7 |
0.5 |
RD/BN |
4940 |
II |
UGN |
Battery Positive Voltage |
7 |
0.5 |
RD/BN |
4940 |
IV |
- |
| 8 |
0.75 |
GY/BN |
309 |
III |
- |
Right Park Lamp Control |
8 |
0.5 |
GY/BN |
309 |
V |
- |
| 9 |
0.5 |
OG/GN |
1409 |
I |
- |
Right Front Discriminating Sensor Signal |
9 |
0.5 |
OG/GN |
1409 |
VII |
- |
| 10 |
0.5 |
BK/OG |
5600 |
I |
- |
Right Front Discriminating Sensor Low Reference |
10 |
0.5 |
BK/OG |
5600 |
VII |
- |
| 11 |
0.35 |
GY/VT |
3808 |
I |
- |
Front Object Sensor Control 2 |
11 |
0.35 |
GY/VT |
3808 |
VI |
- |
| 12 - 23 |
- |
- |
- |
- |
- |
Not Occupied |
12 - 23 |
- |
- |
- |
- |
- |
| 24 |
0.5 |
BU/RD |
460 |
I |
- |
Engine Control Sensors 5 Volt Reference 1 |
24 |
0.5 |
BU/RD |
460 |
VII |
- |
| 25 |
0.5 |
BK/GY |
626 |
I |
- |
Engine Control Vehicle Sensors Low Reference 1 |
25 |
0.5 |
BK/GY |
626 |
VII |
- |
| 26 |
0.5 |
YE |
3054 |
I |
- |
Turbo Intake Pressure Sensor Signal Bank 1 |
26 |
0.5 |
YE |
3054 |
VII |
- |
| 27 - 30 |
- |
- |
- |
- |
- |
Not Occupied |
27 - 30 |
- |
- |
- |
- |
- |
