Air Cleaner Outlet Front Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

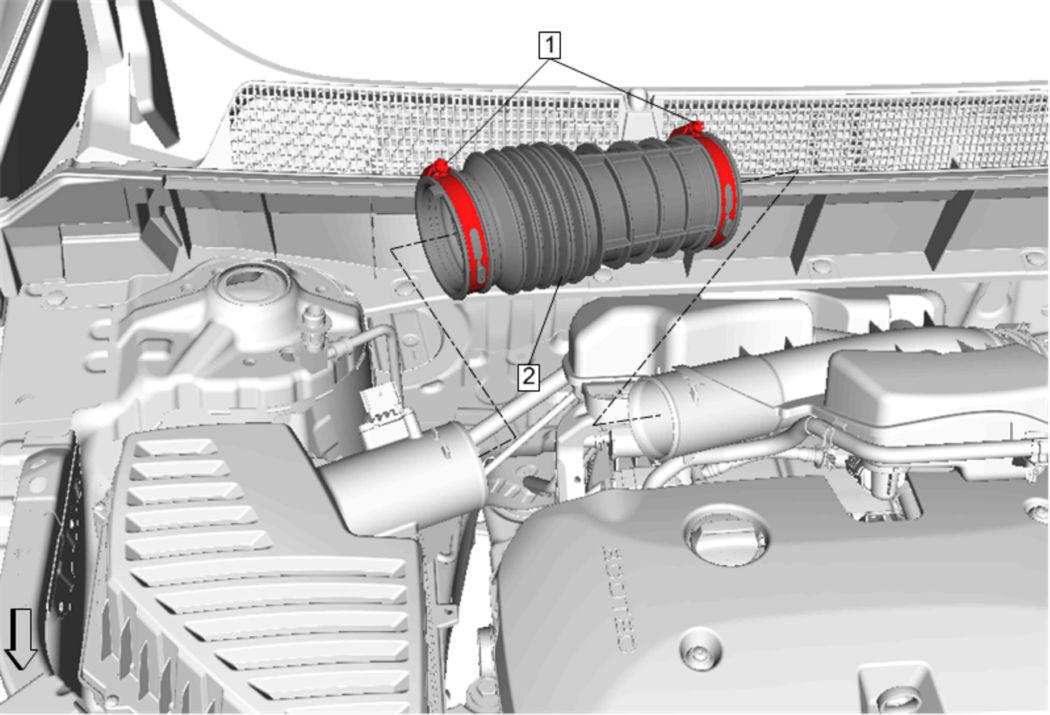

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Air Cleaner Outlet Front Duct Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Air Cleaner Outlet Front Duct
