Ignition and Start Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

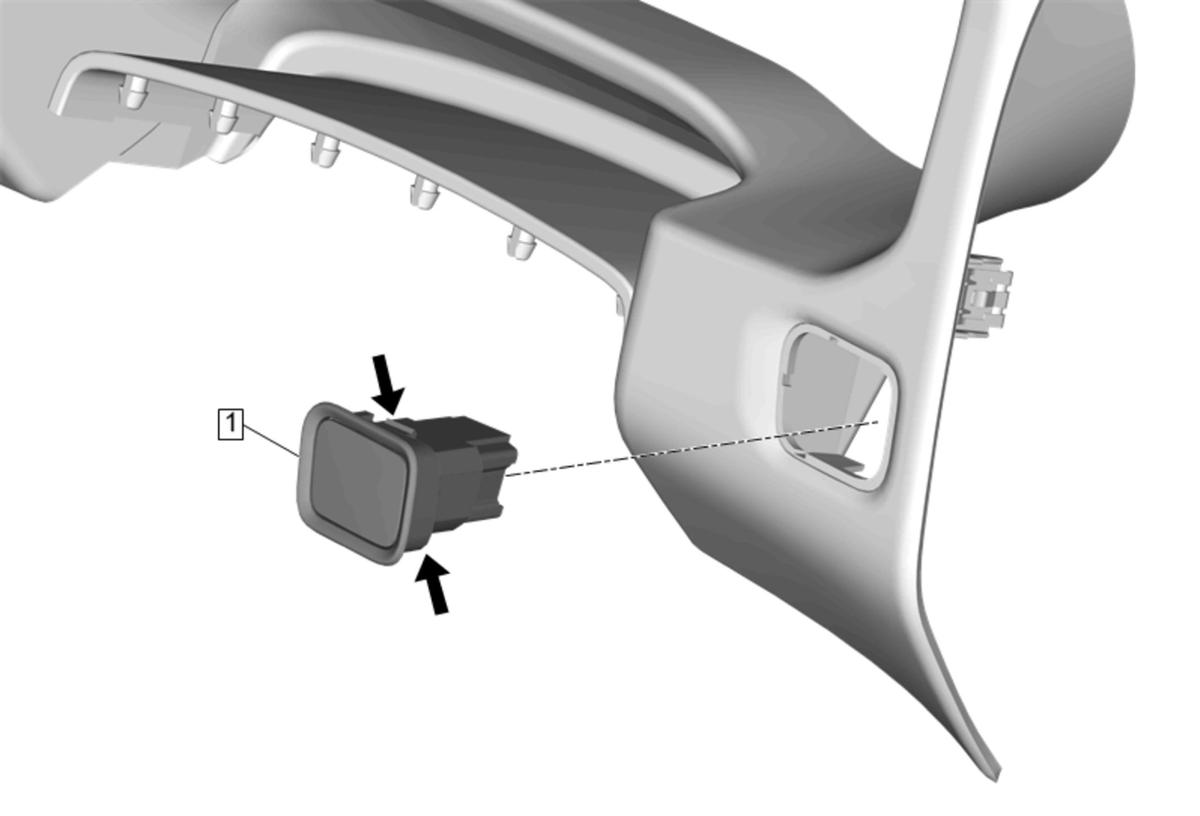

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Instrument Panel Cluster Trim Plate Replacement
1	Ignition and Start Switch Procedure  Release the retaining tabs and remove the ignition and start switch from the trim piece.
