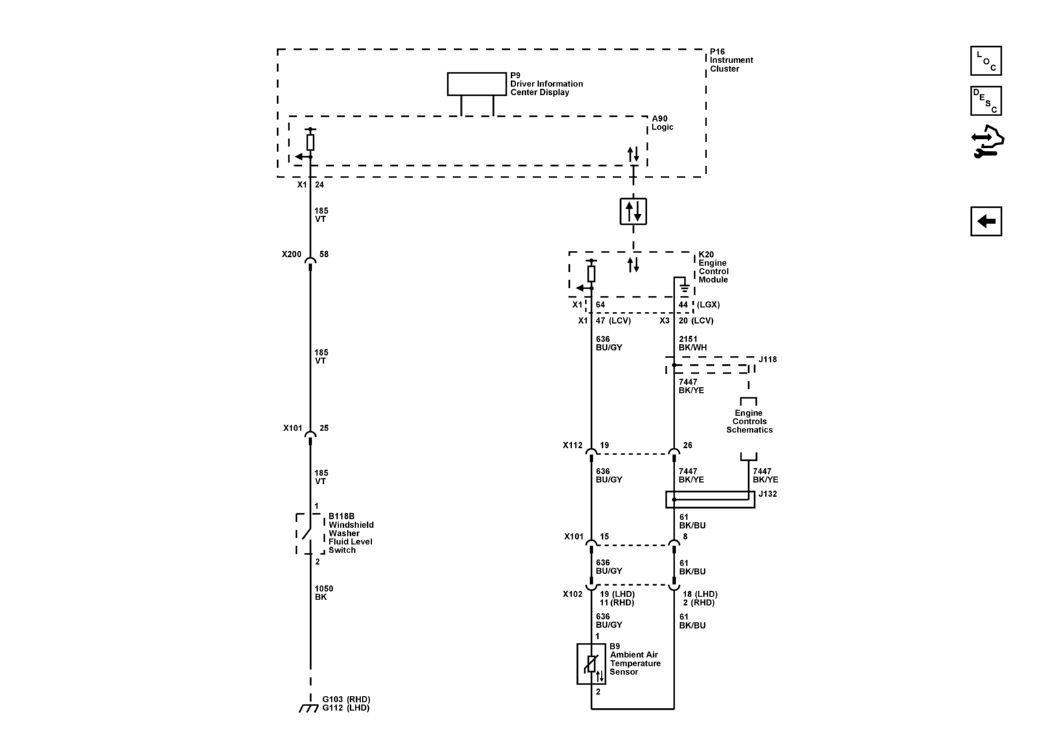

Air Temperature, Driver Information Center, and Compass

GM5481468

Courtesy of GENERAL MOTORS COMPANY
