Head-Up Display Replacement

Courtesy of GENERAL MOTORS COMPANY

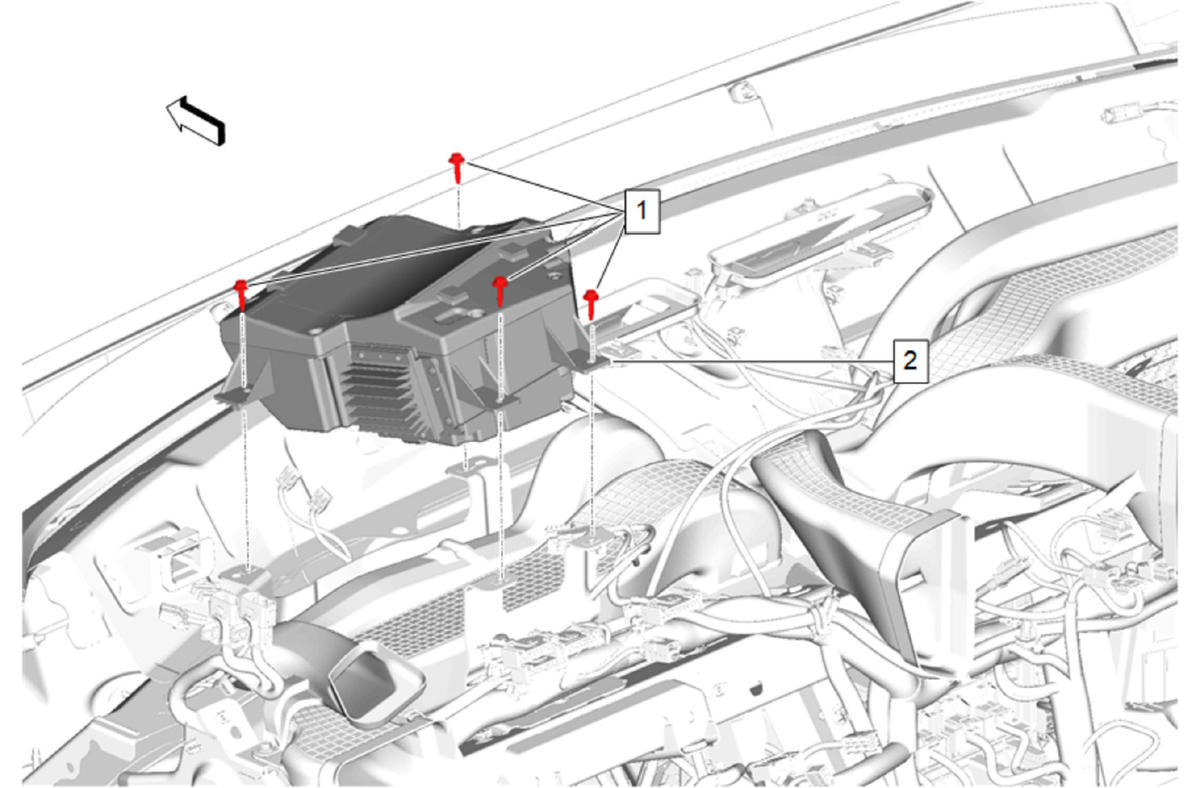

Callout	Component Name
Preliminary Procedure Instrument Panel Assembly Replacement
1	Head-Up Display Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Head-Up Display Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Head-Up Display

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
