Q44 Engine Oil Pressure Control Solenoid Valve (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

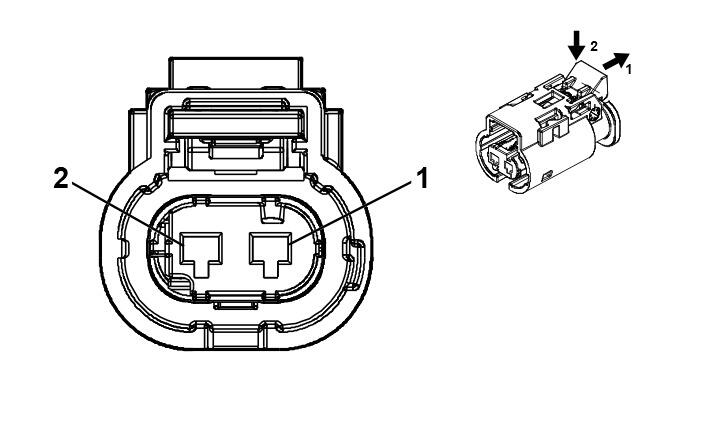

Connector Part Information
- Harness Type: Engine Oil Level Indicator Control Module Wiring Harness
- OEM Connector: 10142540
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.2 MLK Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/BN |
106 |
Oil Pump Motor Control |
I |
- |
| 2 |
0.5 |
BU |
179 |
Engine Oil Pump Control |
I |
- |
