Q40 Turbocharger Bypass Solenoid Valve (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

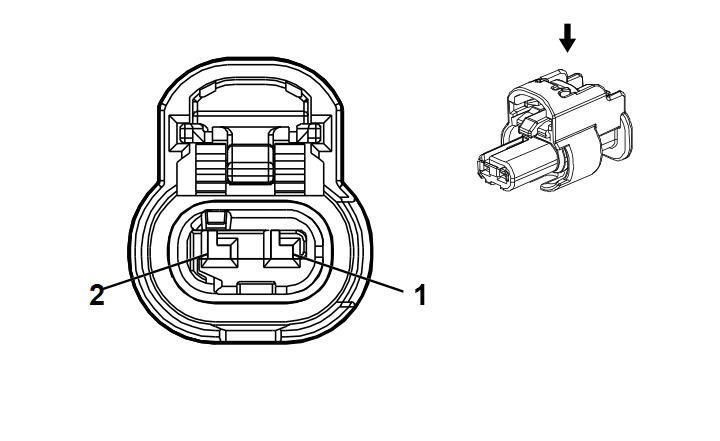

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13512367
- Service Connector: 19366871
- Description: 2-Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
LSY |
| 2 |
0.5 |
GN |
3060 |
Turbocharger Bypass Solenoid Valve Control Bank 1 |
I |
LSY |
