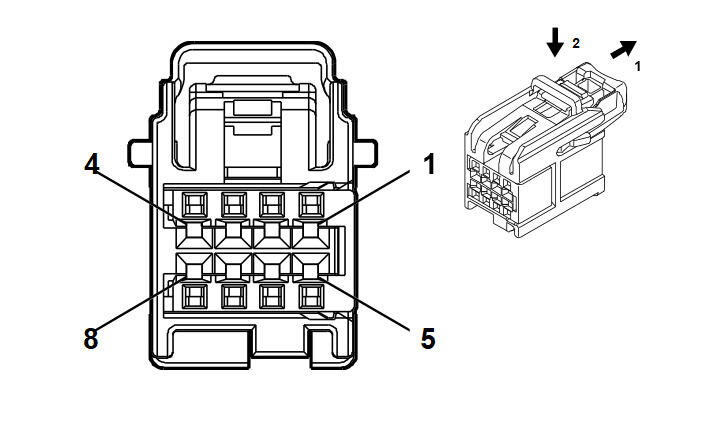

P29 Head-Up Display X1 (UV6)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 13591515
- Service Connector: 19370429
- Description: 8-Way F 0.64 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
3894 |
Instrument Panel Cluster Control Module LIN Bus 1 |
I |
UV6 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
YE/WH |
622 |
Head-Up Display Switch Signal |
I |
UV6 |
| 4 |
0.5 |
BK |
1750 |
Ground |
I |
UV6 |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
RD/YE |
5040 |
Battery Positive Voltage |
I |
UV6 |
| 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.35 |
BK/GN |
5699 |
Head-Up Display Switch Low Reference |
I |
UV6 |
