M46 Air Recirculation Door Actuator
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

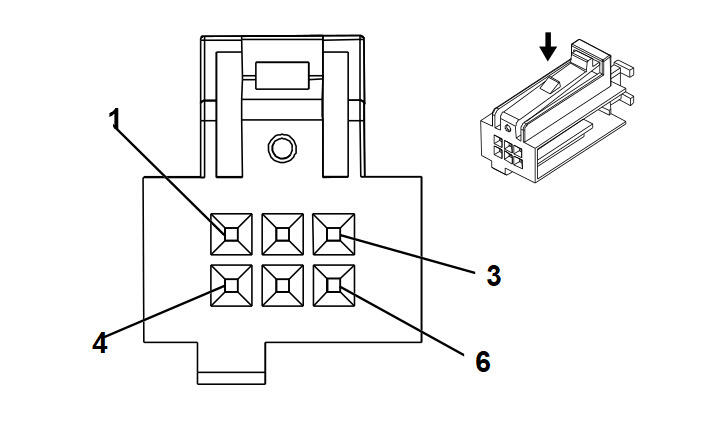

Connector Part Information
- Harness Type: HVAC Wiring Harness
- OEM Connector: 13590886
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
GY |
3173 |
Air Inlet Door Actuator Control 1 |
I |
- |
| 2 |
- |
BK |
7572 |
HVAC Door Actuator Control |
I |
- |
| 3 |
- |
BU/WH |
3174 |
Air Inlet Door Actuator Control 2 |
I |
- |
| 4 |
- |
BN/GN |
3175 |
Air Inlet Door Actuator Control 3 |
I |
- |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
- |
RD/GN |
3176 |
Air Inlet Door Actuator Control 4 |
I |
- |
