M129D Intake Camshaft Profile Actuator 4 (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

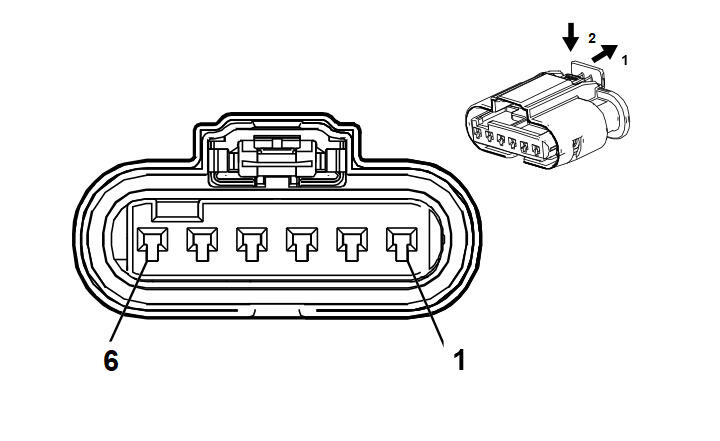

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13599894
- Service Connector: 85005020
- Description: 6-Way F 1.2 MCON-LL Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/YE |
1502 |
Intake Camshaft Profile Actuator 4 Control B |
I |
LSY |
| 2 |
0.5 |
YE/BN |
1702 |
Intake Camshaft Profile Actuator 4 Position Sensor Signal |
I |
LSY |
| 3 |
0.5 |
BK/YE |
548 |
Engine Control Sensors Low Reference 1 |
I |
LSY |
| 4 |
0.5 |
BU/RD |
460 |
Engine Control Sensors 5 Volt Reference 1 |
I |
LSY |
| 5 |
0.5 |
VT/BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
LSY |
| 6 |
0.5 |
GN/YE |
1402 |
Intake Camshaft Profile Actuator 4 Control A |
I |
LSY |
