F101 Passenger Instrument Panel Air Bag X2
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

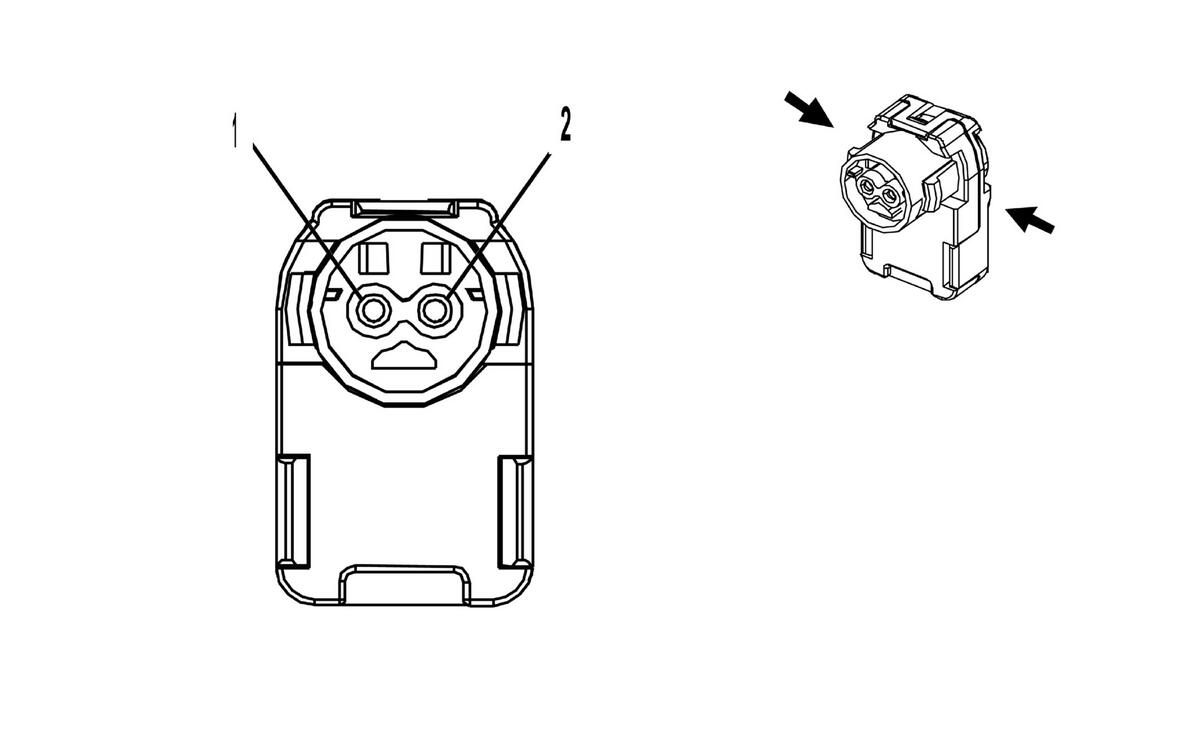

Connector Part Information
- Harness Type: Passenger Air Bag Jumper Wiring Harness
- OEM Connector: 19178107
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 0.64 Series (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
OG/VT |
3026 |
Passenger Instrument Panel Air Bag Stage 2 Low Control |
I |
- |
| 2 |
- |
GY/OG |
3027 |
Passenger Instrument Panel Air Bag Stage 2 High Control |
I |
- |
