E40 Electrical Auxiliary Heater X2
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

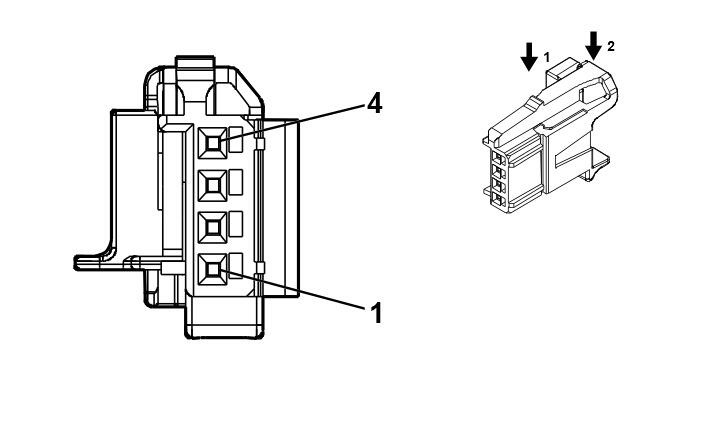

Connector Part Information
- Harness Type: Instrument Panel Wiring Harness
- OEM Connector: 13510940
- Service Connector: 84724190
- Description: 4-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (L-BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT |
3195 |
Auxiliary Heater Control |
I |
- |
| 2 |
0.35 |
VT/GY |
1039 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
