B36 Engine Oil Temperature Sensor (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

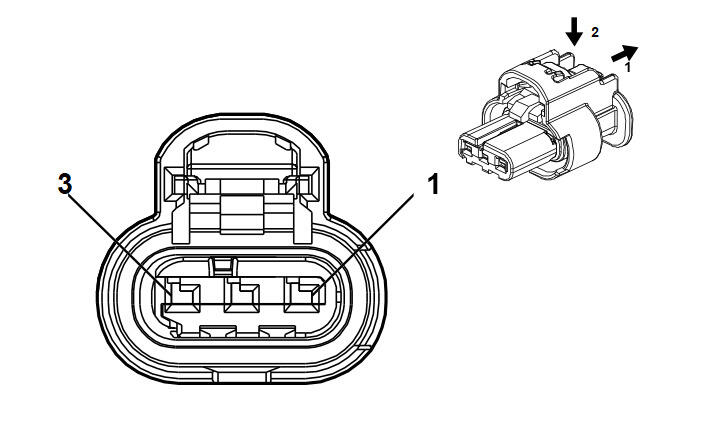

Connector Part Information
- Harness Type: Engine Wiring Harness
- OEM Connector: 13514592
- Service Connector: 19371199
- Description: 3-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/GY |
626 |
Engine Control Vehicle Sensors Low Reference 1 |
I |
LSY |
| 2 |
0.5 |
BN/BU |
357 |
Oil Temperature Sensor Signal |
I |
LSY |
| 3 |
0.5 |
VT |
7485 |
Engine Oil Temperature Sensor 2 Signal |
I |
LSY |
