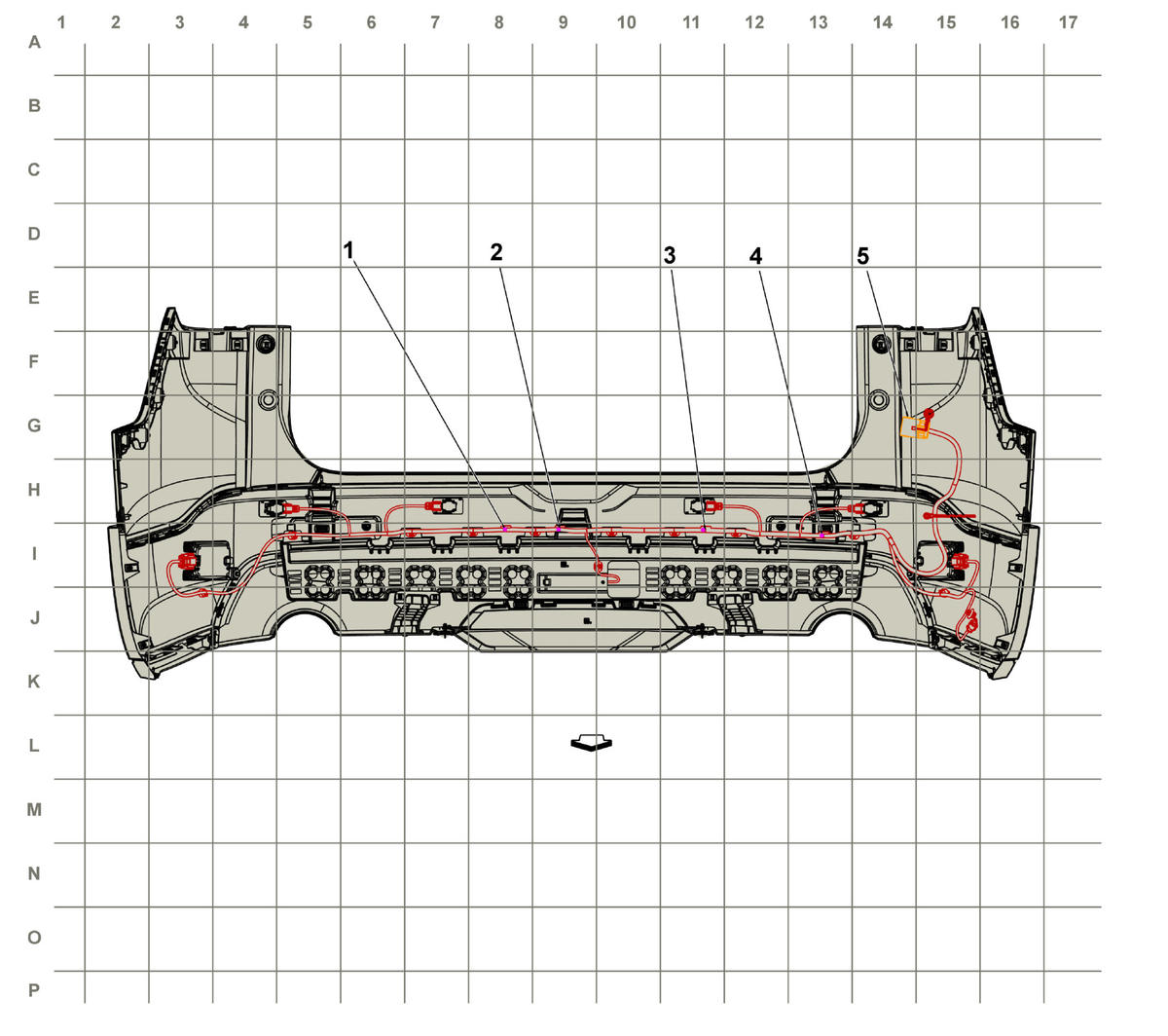

Rear Fascia Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J415 Rear Fascia Harness |
| 2. J414 Rear Fascia Harness (UD5/UD7) |
| 3. J413 Rear Fascia Harness (UD5/UD7) |
| 4. J412 Rear Fascia Harness |
| 5. X400 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness X400 Body Wiring Harness to Rear Object Alarm Sensor Wiring Harness |
