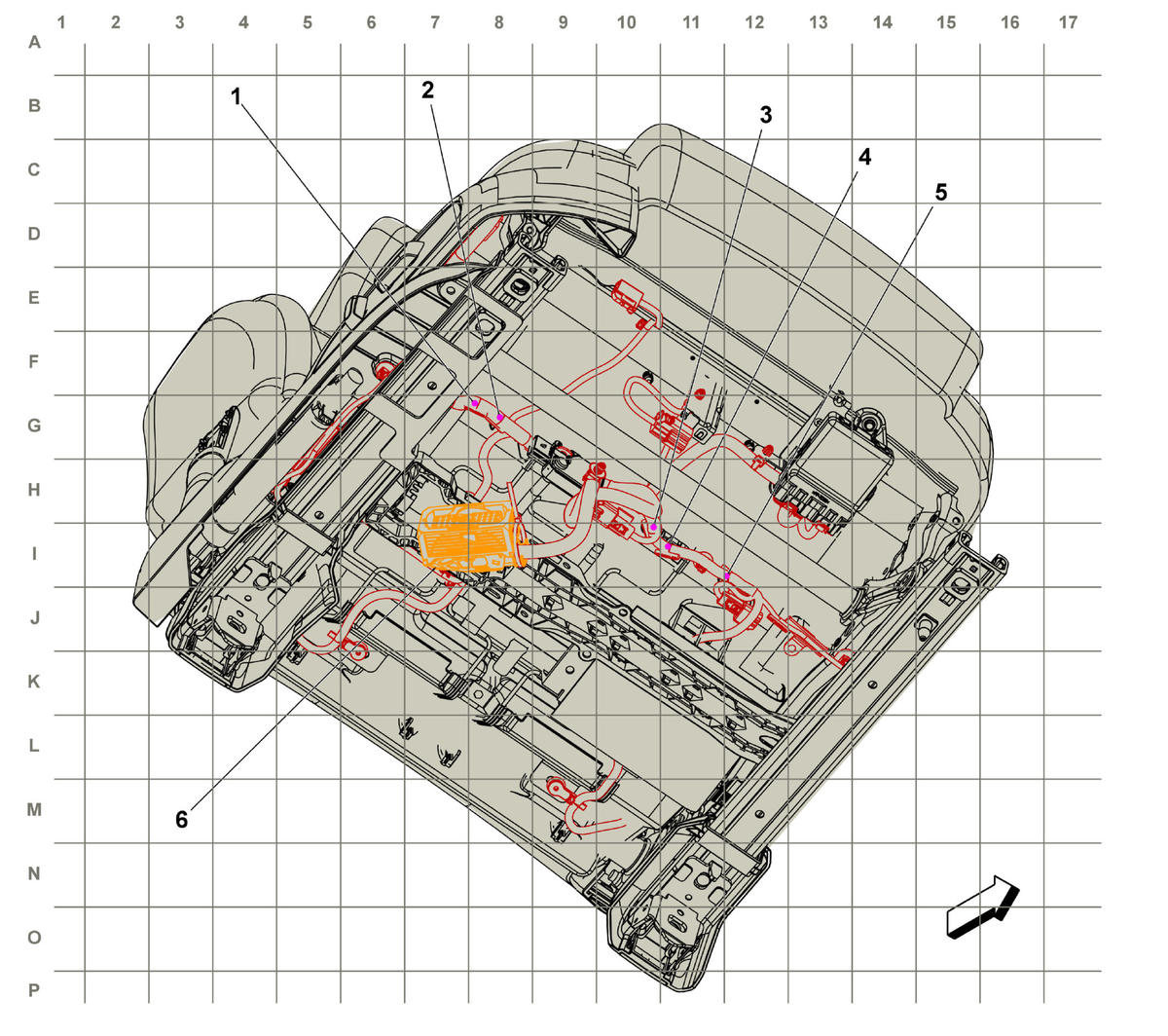

Passenger Seat Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J358 Passenger Seat Harness (KU9) |
| 2. J359 Passenger Seat Harness |
| 3. J360 Passenger Seat Harness (KU9) |
| 4. J361 Passenger Seat Harness (KA1 with KU9) |
| 5. J362 Passenger Seat Harness (KA1) |
| 6. X320 Front Seat Wiring Harness - Passenger to Body Wiring Harness X320 Front Seat Wiring Harness - Passenger to Body Wiring Harness |
