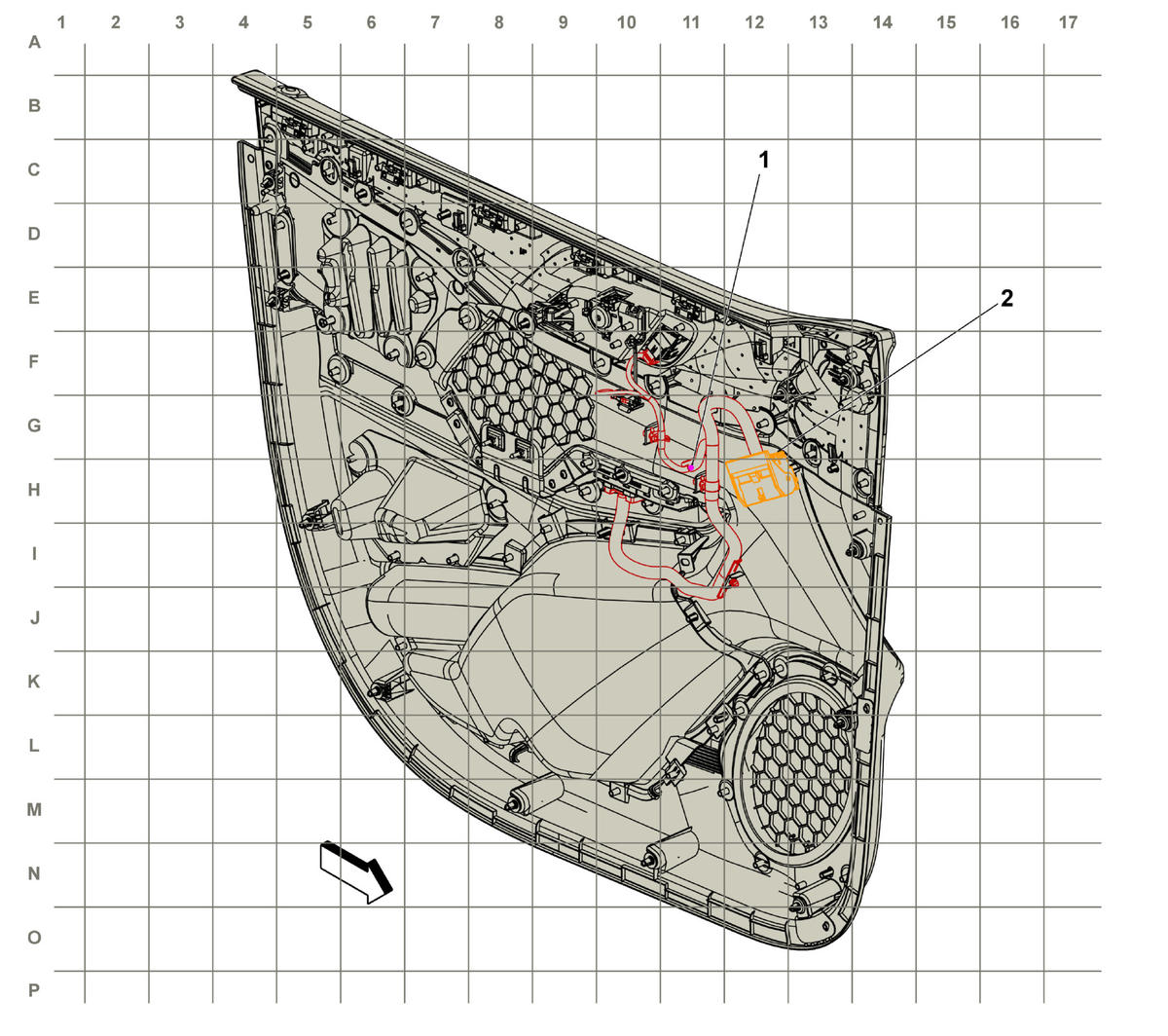

Passenger Door Trim Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J601 Pasenger Door Trim Harness |
| 2. X605 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock and Power Window and O X605 Front Side Door Door Wiring Harness - Passenger to Front Side Door Door Lock and Power Window and Outside Rearview Mirror Wiring Harness - Passenger |
