Liftgate Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

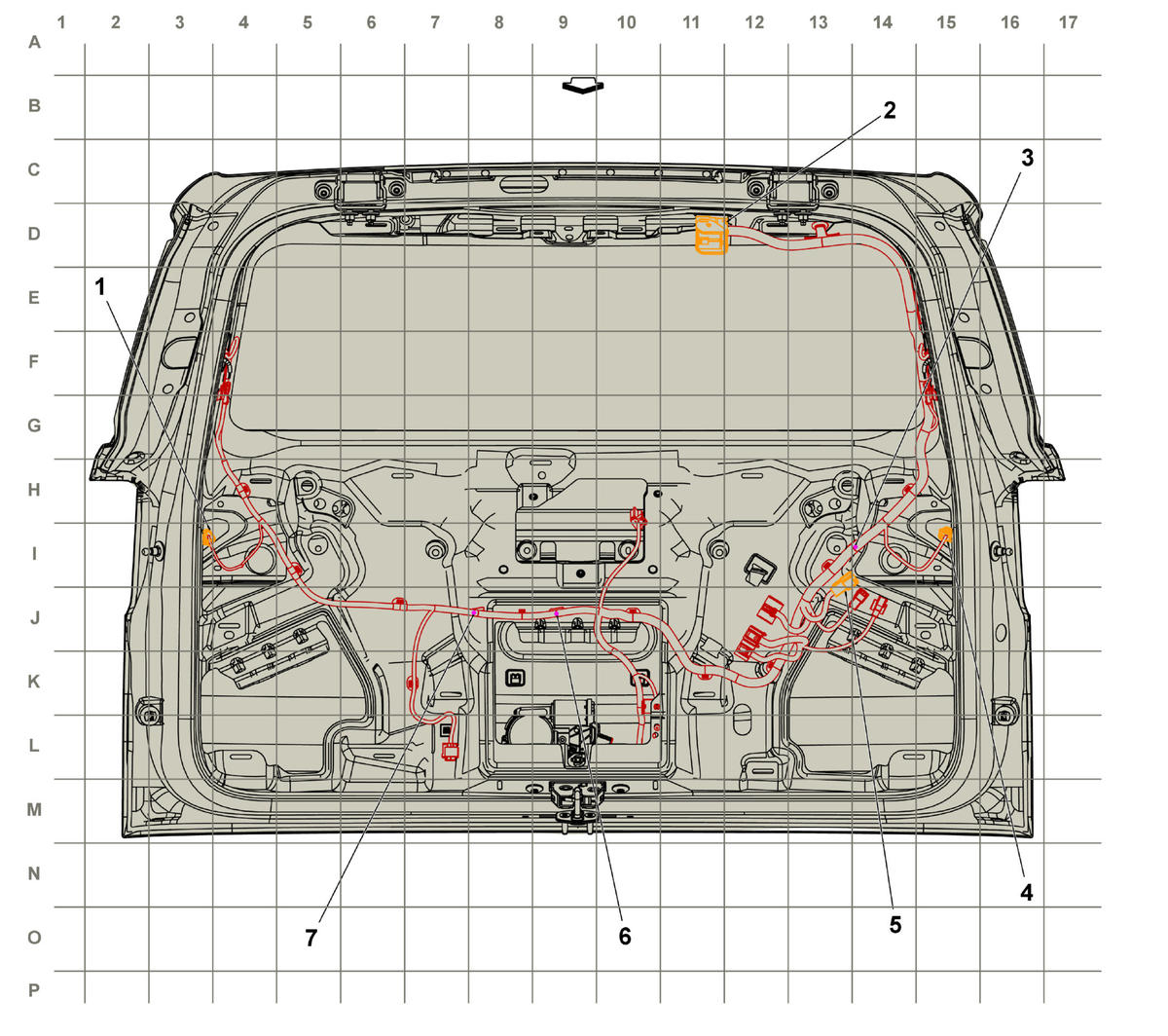

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X920 Liftgate Wiring Harness to Tail Lamp - Right X920 Liftgate Wiring Harness to Tail Lamp - Right |
| 2. X900 Body Wiring Harness to Liftgate Wiring Harness X900 Body Wiring Harness to Liftgate Wiring Harness |
| 3. J900 Liftgate Harness |
| 4. X910 Liftgate Wiring Harness to Tail Lamp - Left X910 Liftgate Wiring Harness to Tail Lamp - Left |
| 5. X901 Rear License Plate Lamp Wiring Harness to Liftgate Wiring Harness X901 Rear License Plate Lamp Wiring Harness to Liftgate Wiring Harness |
| 6. J901 Liftgate Harness |
| 7. J902 Liftgate Harness |
