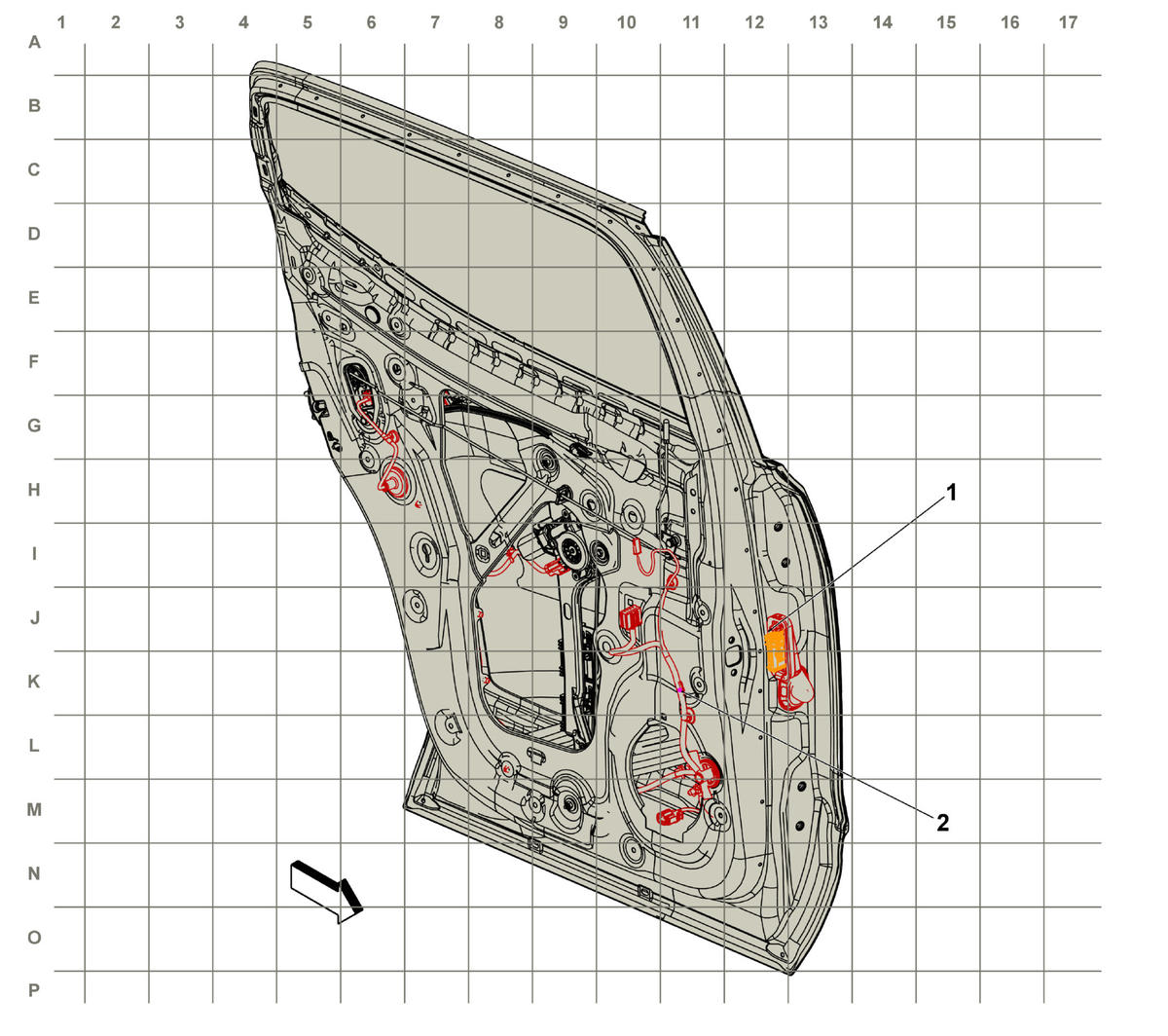

Left Rear Door Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X700 Rear Side Door Door Wiring Harness - Left Rear to Body Wiring Harness X700 Rear Side Door Door Wiring Harness - Left Rear to Body Wiring Harness |
| 2. J700 Left Rear Door Harness |
