Instrument Panel Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

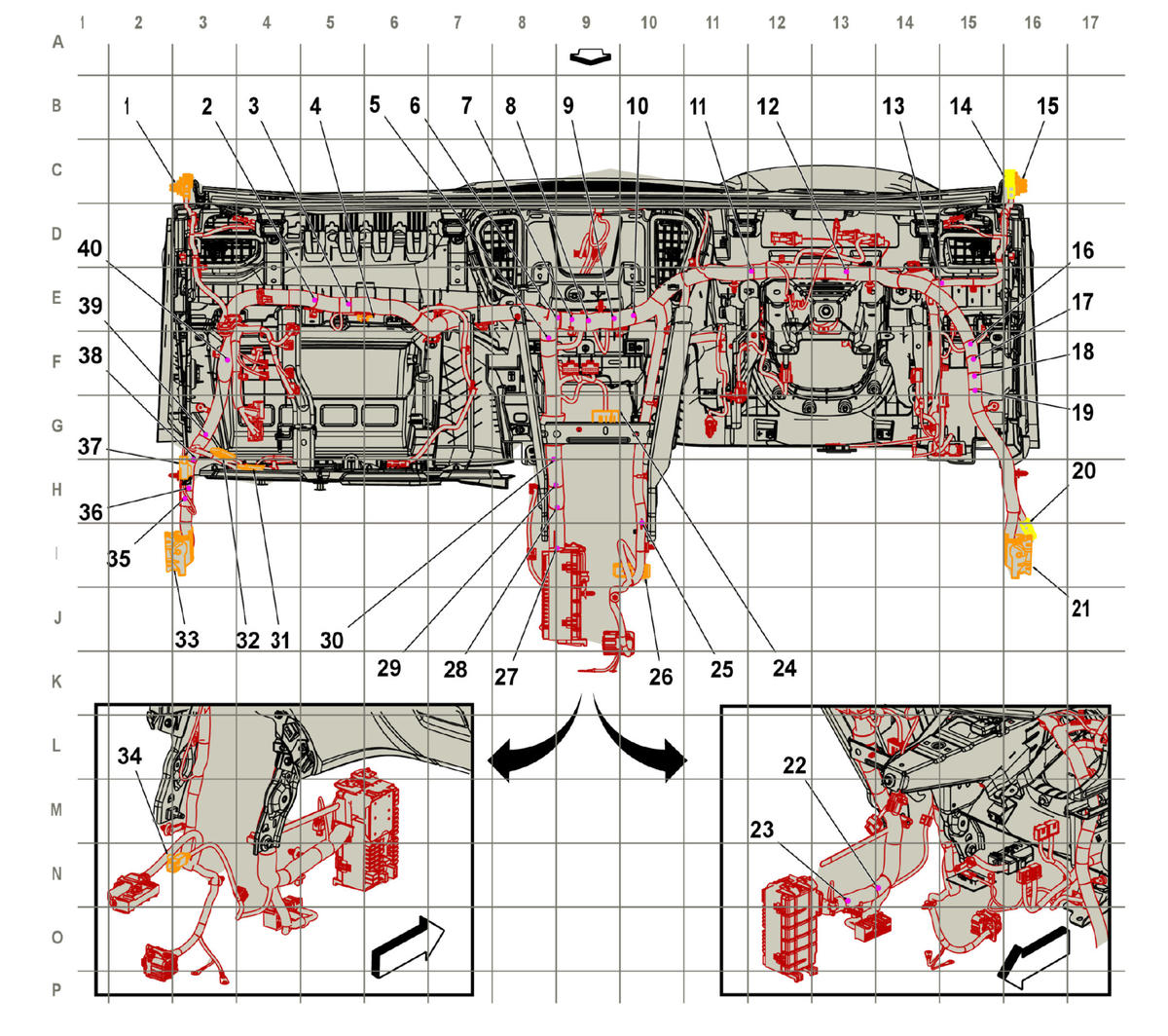

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X205 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X205 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
| 2. J230 Instrument Panel Harness |
| 3. J229 Instrument Panel Harness |
| 4. X207 Instrument Panel Wiring Harness to Passenger Instrument Panel Air Bag Wiring Harness X207 Instrument Panel Wiring Harness to Passenger Instrument Panel Air Bag Wiring Harness |
| 5. J222 Instrument Panel Harness |
| 6. J221 Instrument Panel Harness |
| 7. J220 Instrument Panel Harness (KA1) |
| 8. J219 Instrument Panel Harness |
| 9. J218 Instrument Panel Harness (C69) |
| 10. J217 Instrument Panel Harness (KA1) |
| 11. J215 Instrument Panel Harness |
| 12. J214 Instrument Panel Harness |
| 13. J213 Instrument Panel Harness |
| 14. X203 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X203 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
| 15. X204 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X204 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
| 16. J212 Instrument Panel Harness |
| 17. J211 Instrument Panel Harness |
| 18. J210 Instrument Panel Harness |
| 19. J209 Instrument Panel Harness |
| 20. X202 Instrument Panel Wiring Harness to Body Wiring Harness X202 Instrument Panel Wiring Harness to Body Wiring Harness |
| 21. X200 Instrument Panel Wiring Harness to Body Wiring Harness X200 Instrument Panel Wiring Harness to Body Wiring Harness |
| 22. J227 Instrument Panel Harness |
| 23. J228 Instrument Panel Harness |
| 24. X206 Instrument Panel Wiring Harness to HVAC Wiring Harness X206 Instrument Panel Wiring Harness to HVAC Wiring Harness |
| 25. J216 Instrument Panel Harness |
| 26. X212 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness X212 Front Floor Console Wiring Harness to Instrument Panel Wiring Harness |
| 27. J226 Instrument Panel Harness |
| 28. J225 Instrument Panel Harness |
| 29. J224 Instrument Panel Harness (C69) |
| 30. J223 Instrument Panel Harness |
| 31. JX201 Instrument Panel Harness |
| 32. JX200 Instrument Panel Harness |
| 33. X201 Instrument Panel Wiring Harness to Body Wiring Harness X201 Instrument Panel Wiring Harness to Body Wiring Harness |
| 34. X214 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X214 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness |
| 35. J235 |
| 36. J234 |
| 37. X209 Body Wiring Harness to Instrument Panel Wiring Harness X209 Body Wiring Harness to Instrument Panel Wiring Harness (UV2+(IOS/IOU/IOT)) , or X209 Body Wiring Harness to Instrument Panel Wiring Harness (UVB+IOR) |
| 38. J233 |
| 39. J232 |
| 40. J231 |
