Headliner Harness Routing (Without Sunroof)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

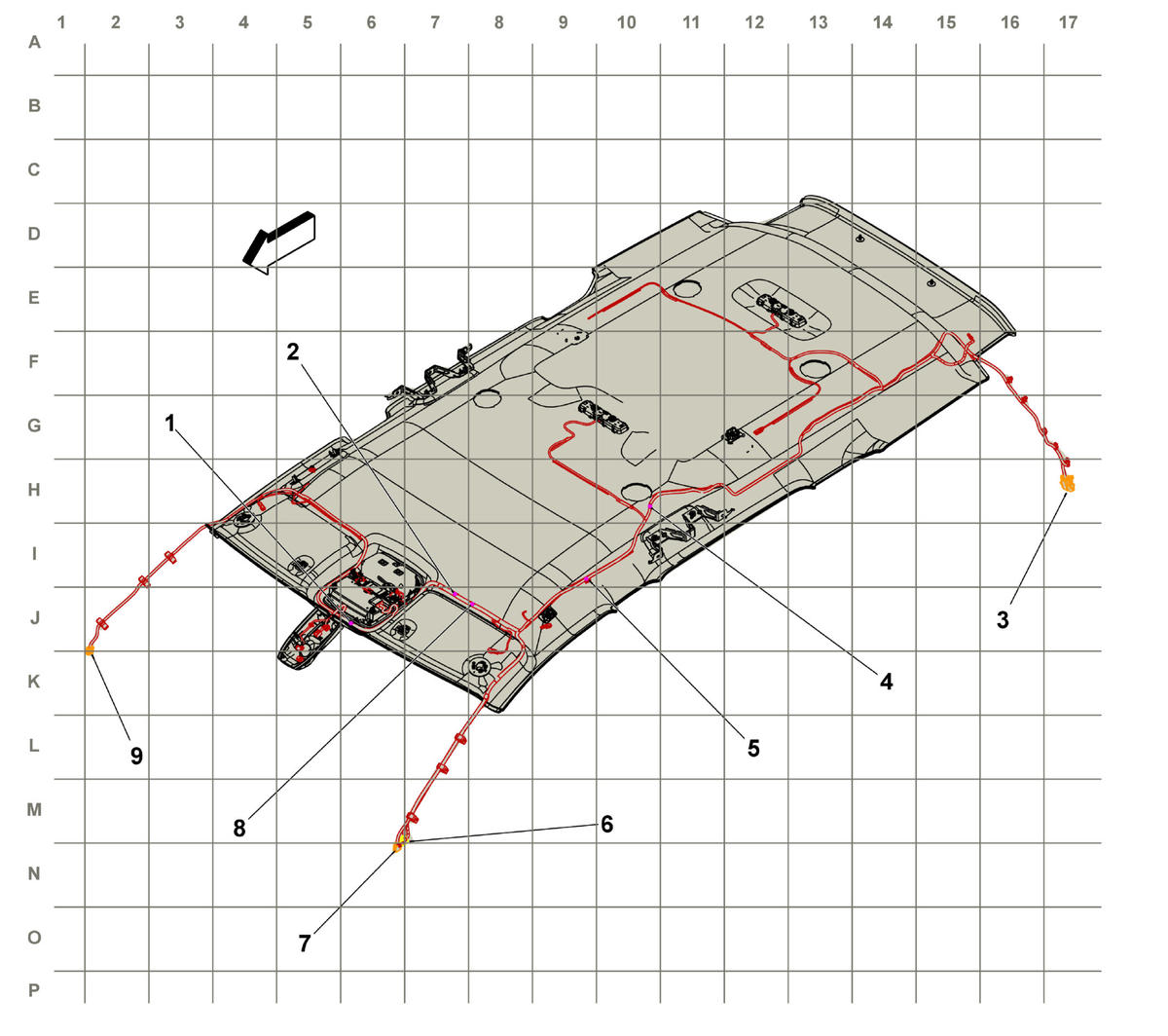

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J368 Headliner Harness |
| 2. J365 Headliner Harness |
| 3. X401 Body Wiring Harness to Headlining Trim Panel Harness X401 Body Wiring Harness to Headlining Trim Panel Harness |
| 4. J367 Headliner Harness |
