Headliner Harness Routing (With Sunroof)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

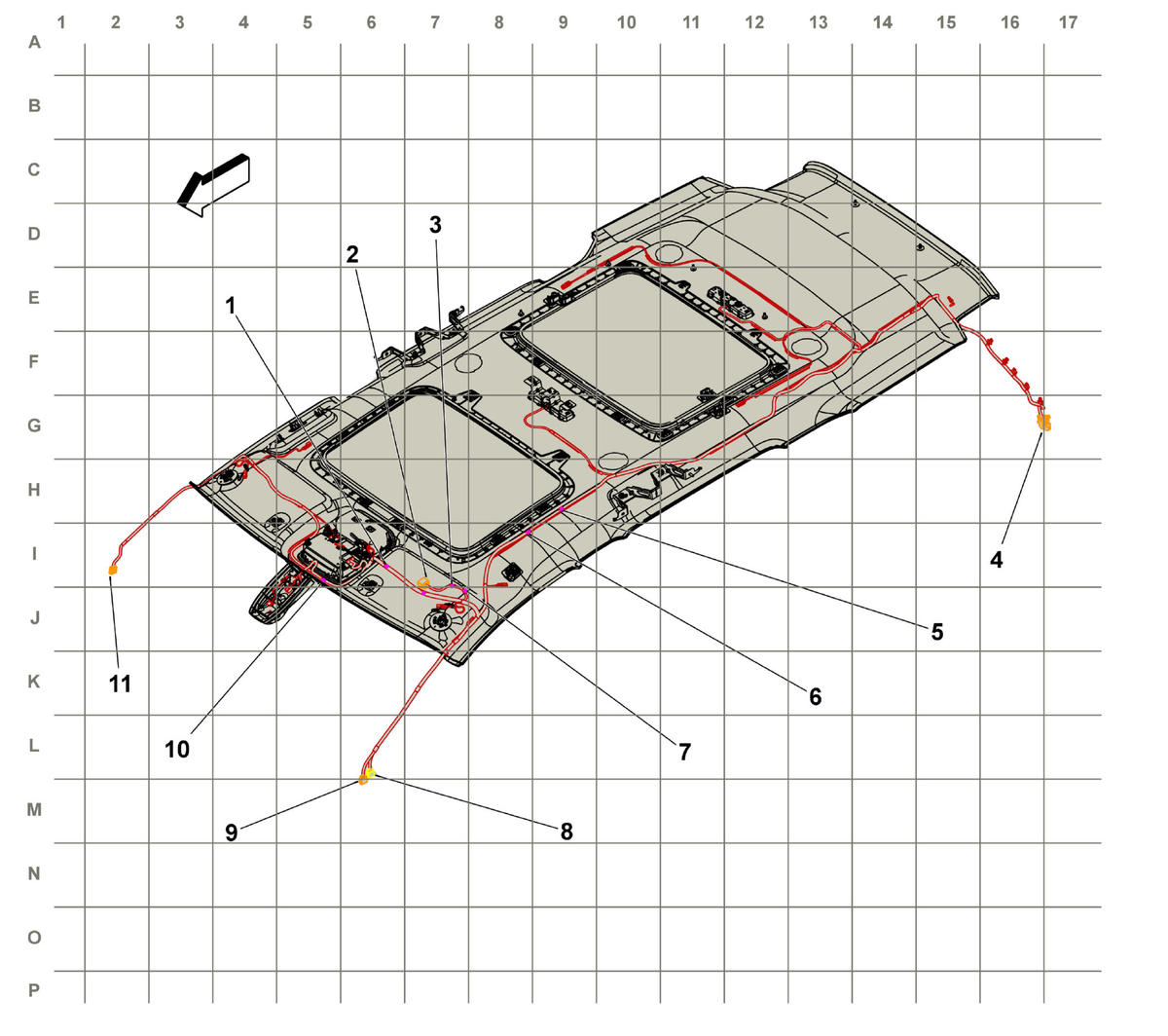

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J336 Body Harness (UEU) |
| 2. X305 |
| 3. J370 Headliner Harness (C3U) |
| 4. X401 Body Wiring Harness to Headlining Trim Panel Harness X401 Body Wiring Harness to Headlining Trim Panel Harness |
| 5. J367 Headliner Harness |
| 6. J364 Headliner Harness |
| 7. J369 Headliner Harness (C3U) |
| 8. X203 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X203 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
| 9. X204 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X204 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
| 10. J368 Headliner Harness |
| 11. X205 Headlining Trim Panel Harness to Instrument Panel Wiring Harness X205 Headlining Trim Panel Harness to Instrument Panel Wiring Harness |
