Front Fascia Harness Routing

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

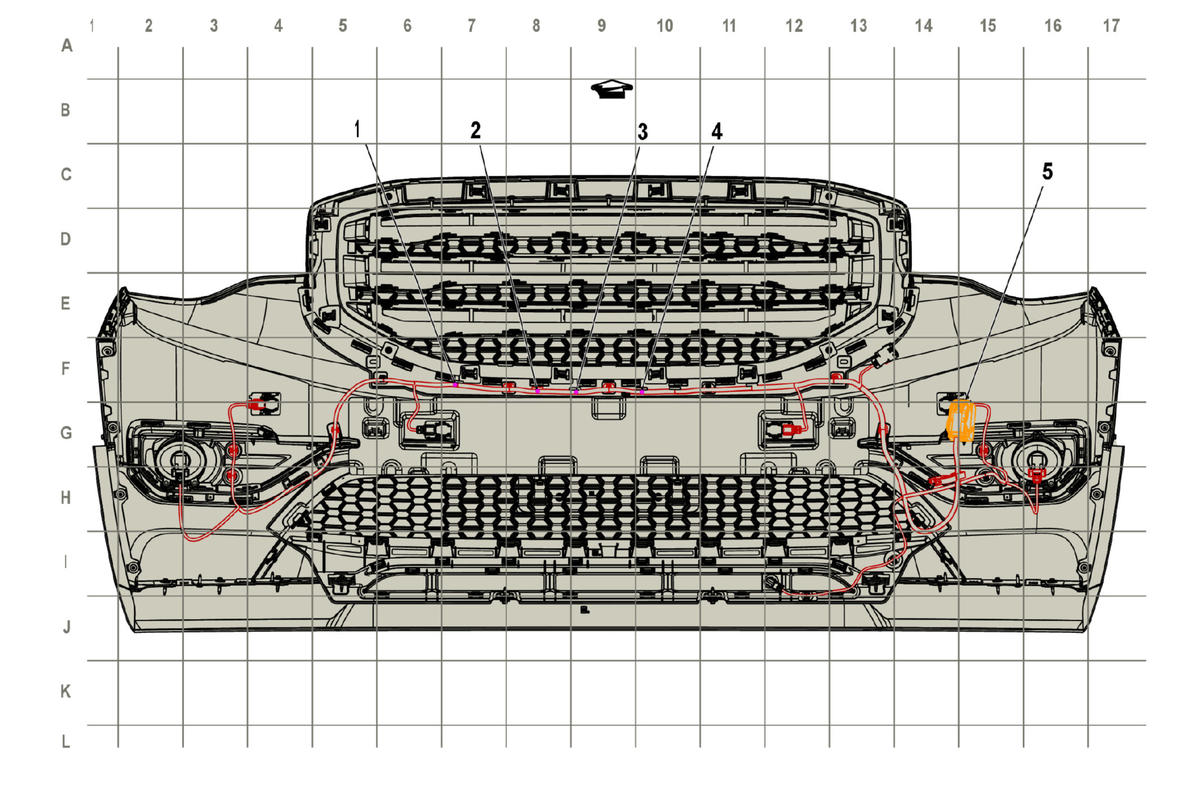

GM5867399Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. J100 Front Fascia Harness
2. J101 Front Fascia Harness
3. J102 Front Fascia Harness
4. J103 Front Fascia Harness
5. X102 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness X102 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness
