Forward Lamp Harness Routing (2 of 2)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

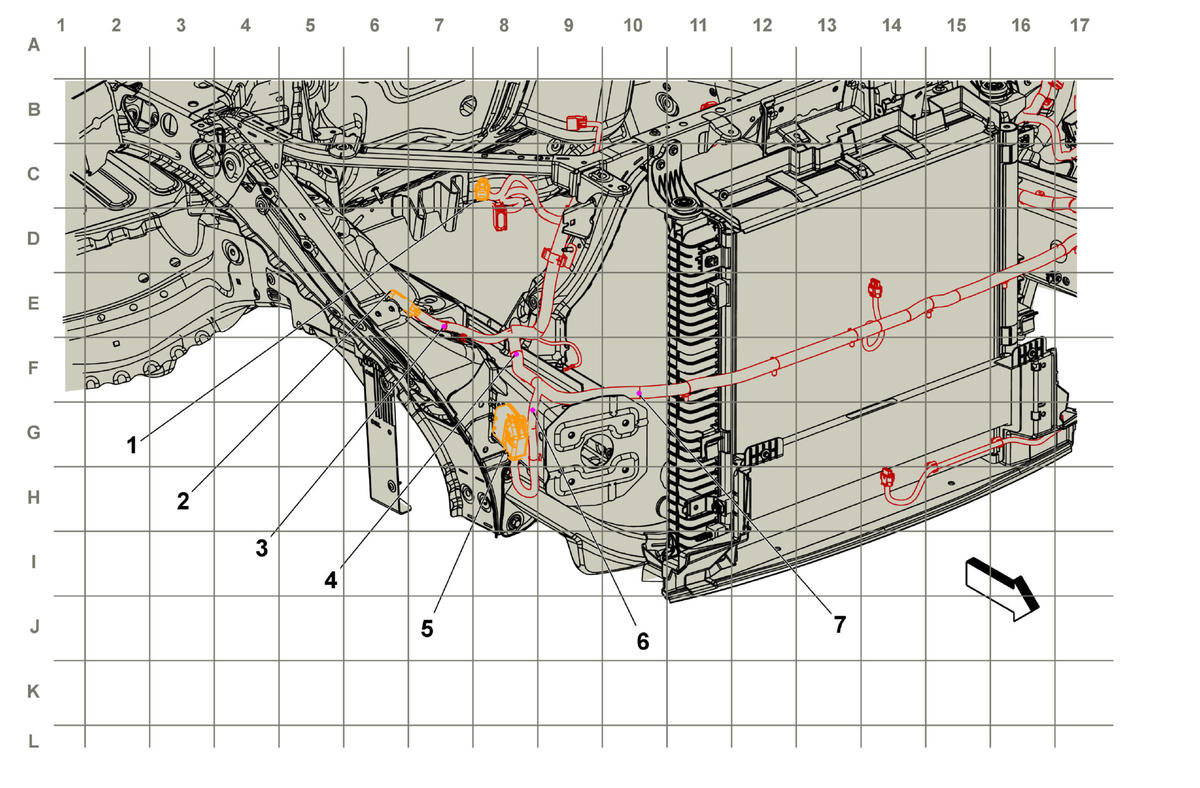

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X120 Forward Lamp Wiring Harness to Headlamp - Right X120 Forward Lamp Wiring Harness to Headlamp - Right |
| 2. X104 Body Wiring Harness to Forward Lamp Wiring Harness X104 Body Wiring Harness to Forward Lamp Wiring Harness |
| 3. J114 |
| 4. J113 |
| 5. X102 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness X102 Front Object Alarm Sensor Wiring Harness to Forward Lamp Wiring Harness |
| 6. J112 Forward Lamp Harness |
| 7. J111 Forward Lamp Harness |
