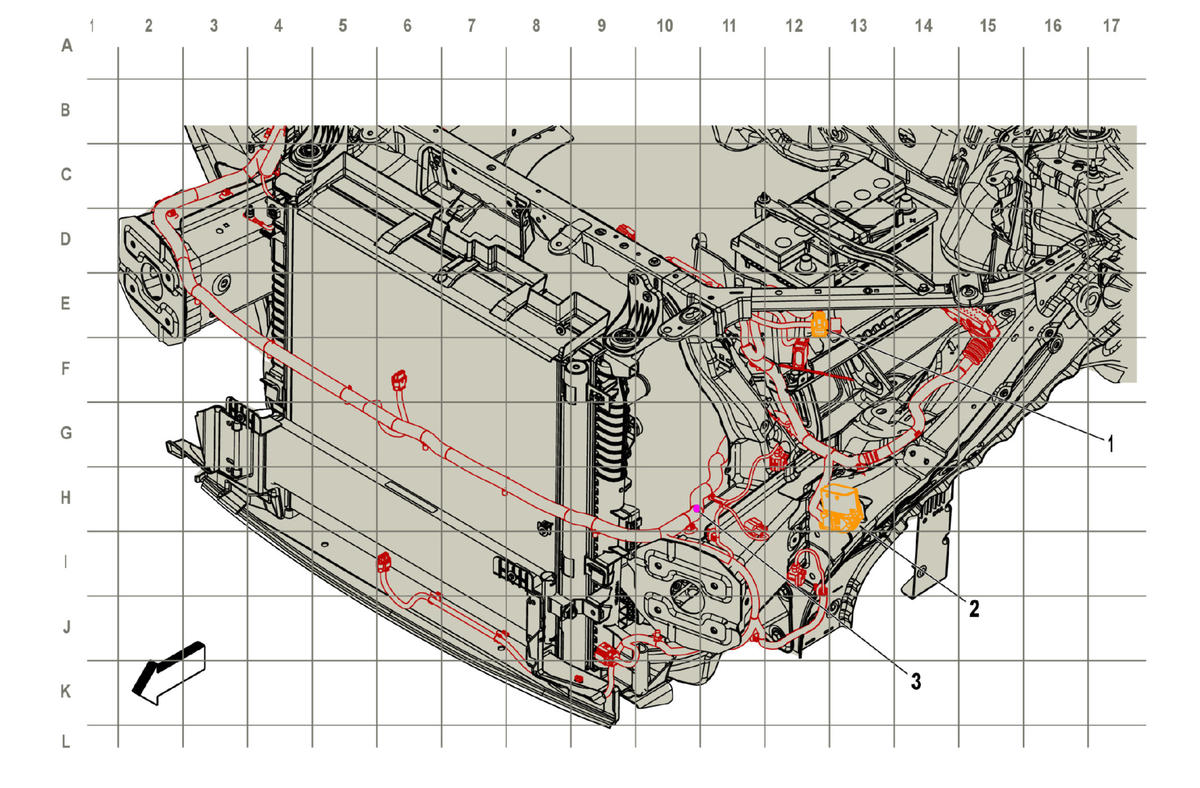

Forward Lamp Harness Routing (1 of 2)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X110 Forward Lamp Wiring Harness to Headlamp - Left X110 Forward Lamp Wiring Harness to Headlamp - Left |
| 2. X101 Body Wiring Harness to Forward Lamp Wiring Harness X101 Body Wiring Harness to Forward Lamp Wiring Harness |
| 3. J107 Forward Lamp Harness |
