Engine Harness Routing - Left Front (LSY)
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

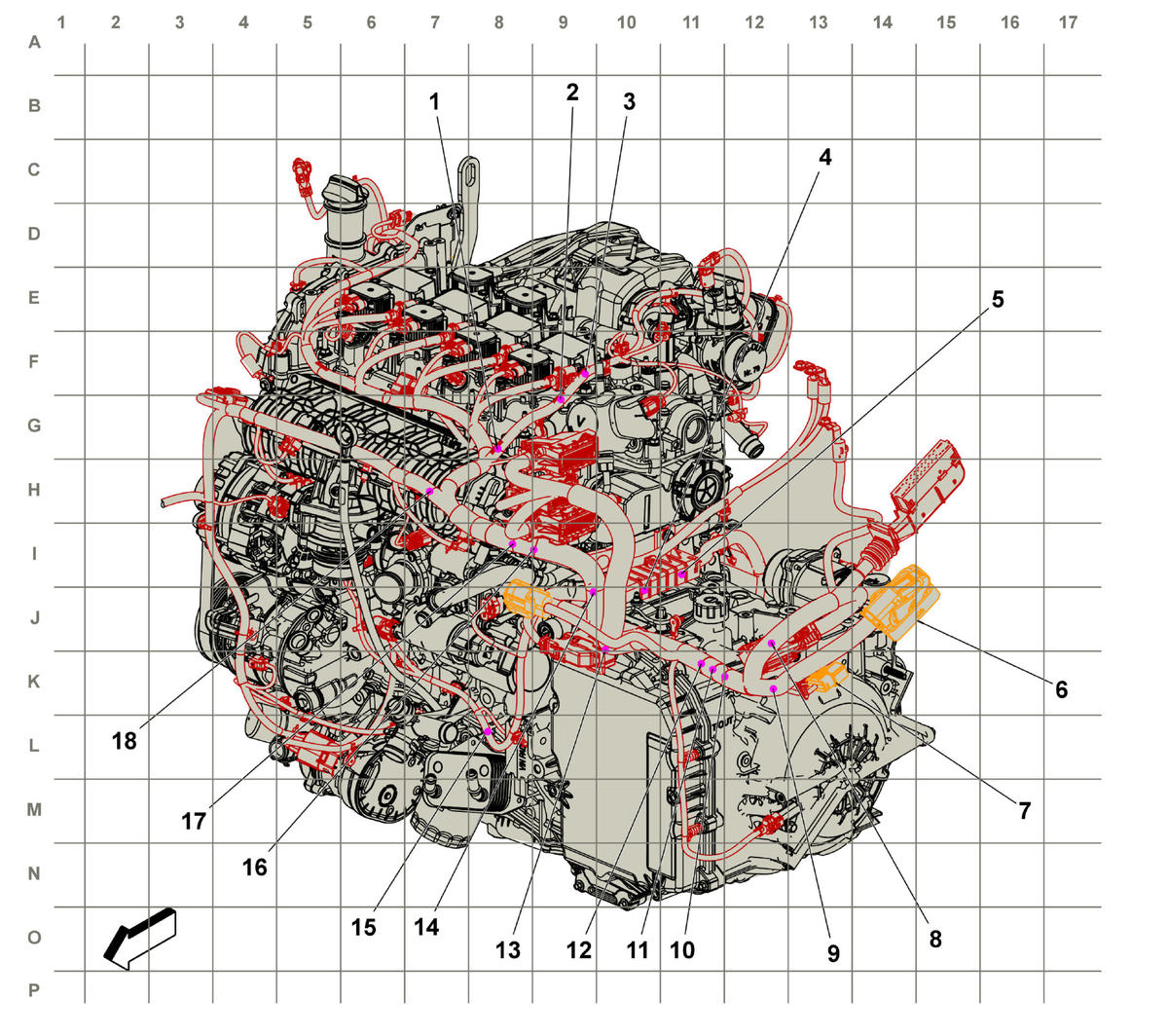

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J121 Engine Harness |
| 2. J155 Engine Harness (LSY) |
| 3. J156 Engine Harness |
| 4. J119 Engine Harness |
| 5. J154 |
| 6. X112 Engine Wiring Harness to Body Wiring Harness X112 Engine Wiring Harness to Body Wiring Harness |
| 7. X114 Engine Wiring Harness to Body Wiring Harness (LSY) X114 Engine Wiring Harness to Body Wiring Harness |
| 8. J148 Engine Harness |
| 9. J129 Engine Harness (LCV) |
| 10. J136 Body Harness |
| 11. J149 Engine Harness |
| 12. J117 Engine Harness |
| 13. J116 Engine Harness |
| 14. J153 Engine Harness |
| 15. J135 Engine Harness (LCV) |
| 16. J150 Engine Harness (LSY) |
| 17. J151 Engine Harness (LSY) |
| 18. J120 Engine Harness |
