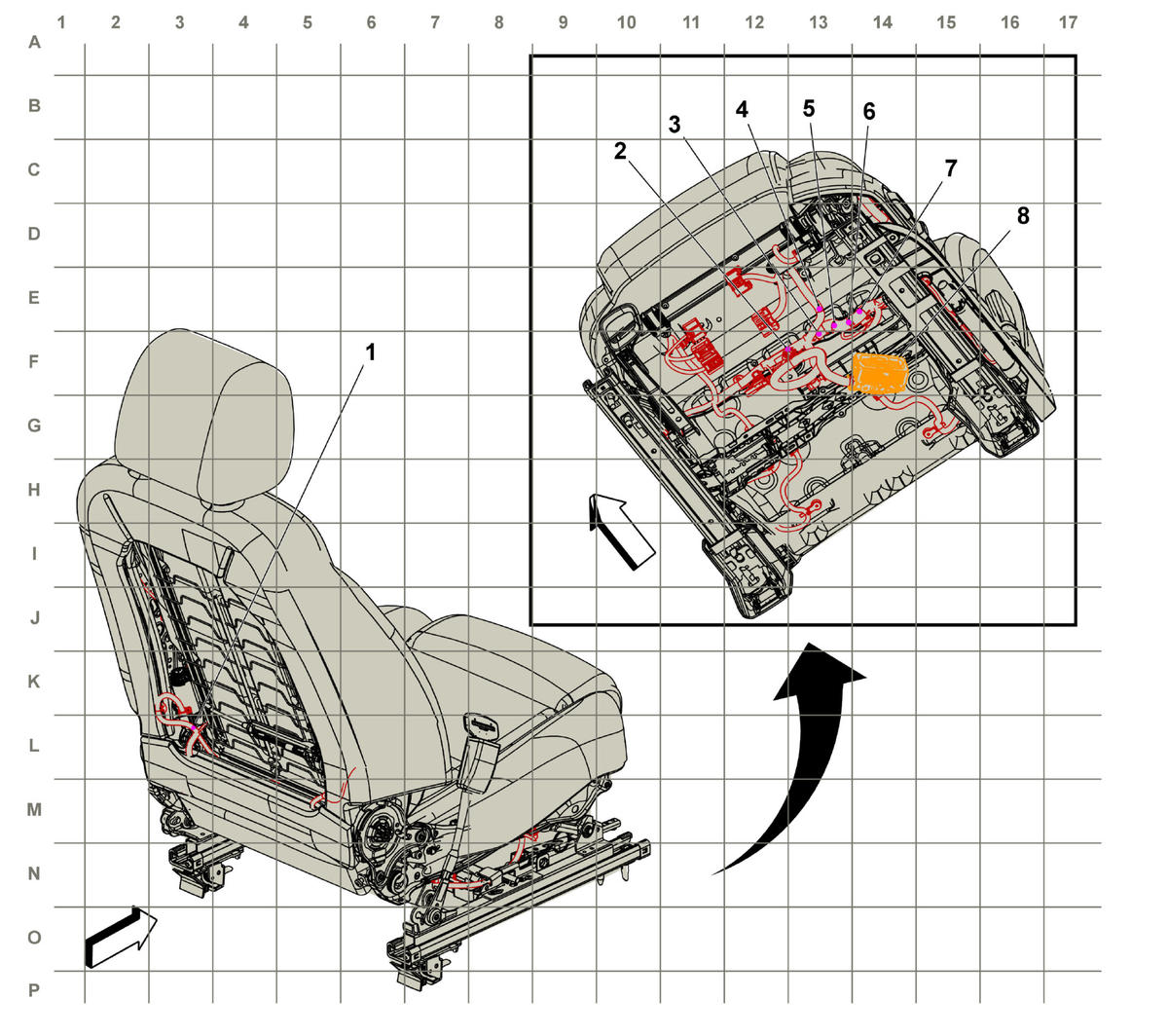

Driver Seat Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J357 Driver Seat Harness (KA1) |
| 2. J350 Driver Seat Harness (KA1) |
| 3. J352 Driver Seat Harness (KA1 with KU9) |
| 4. J351 Driver Seat Harness (AAB) |
| 5. J353 Driver Seat Harness (KU9) |
| 6. J354 Driver Seat Harness |
| 7. J355 Driver Seat Harness (KU9) |
| 8. X310 Front Seat Wiring Harness - Driver to Body Wiring Harness X310 Front Seat Wiring Harness - Driver to Body Wiring Harness |
