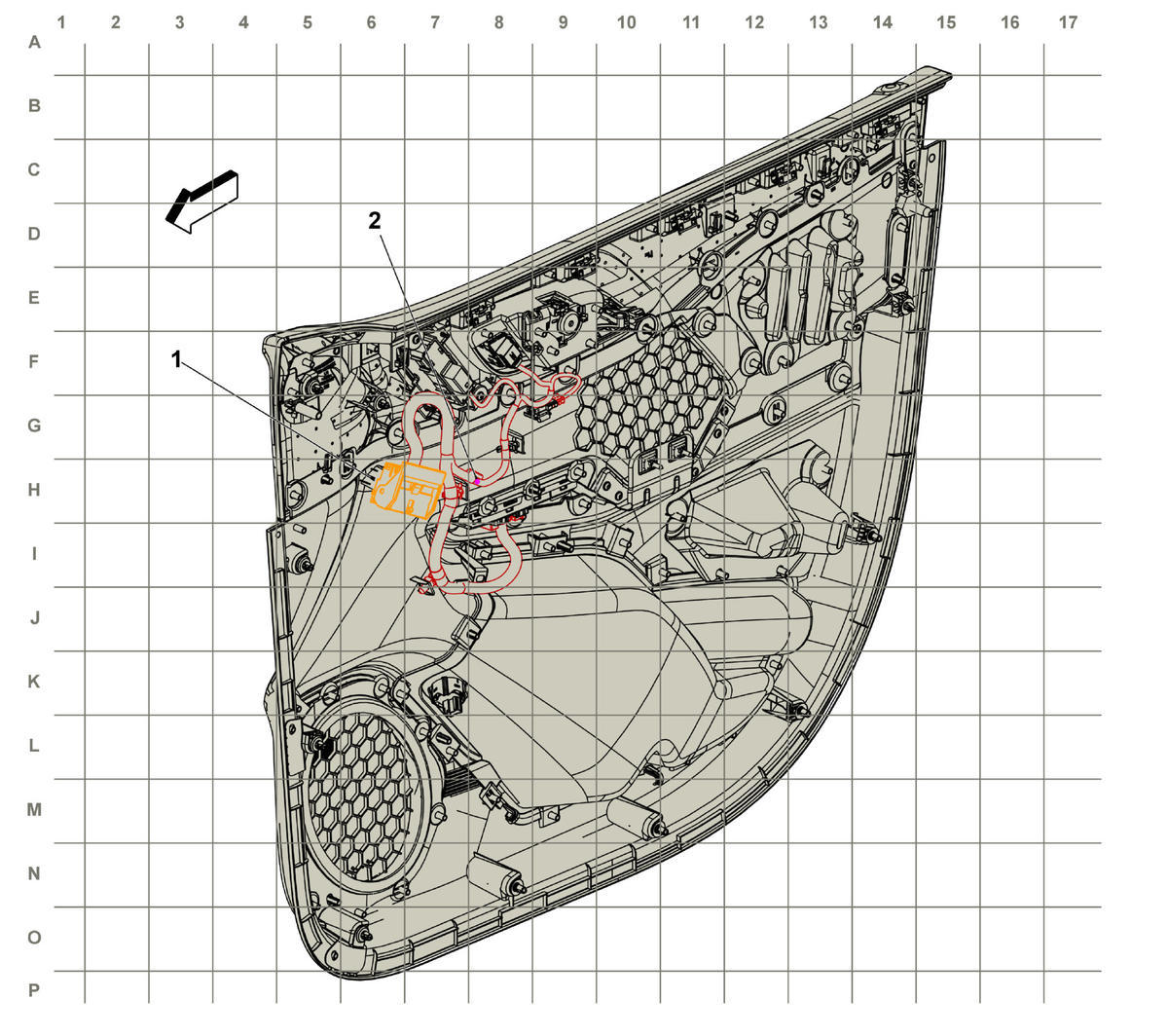

Driver Door Trim Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X505 Front Side Door Door Wiring Harness - Driver to Front Side Door Door Lock and Power Window and Outs X505 Front Side Door Door Wiring Harness - Driver to Front Side Door Door Lock and Power Window and Outside Rearview Mirror Wiring Harness - Driver |
| 2. J502 Driver Door Trim Harness |
