Chassis Harness Routing (1 of 3)

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

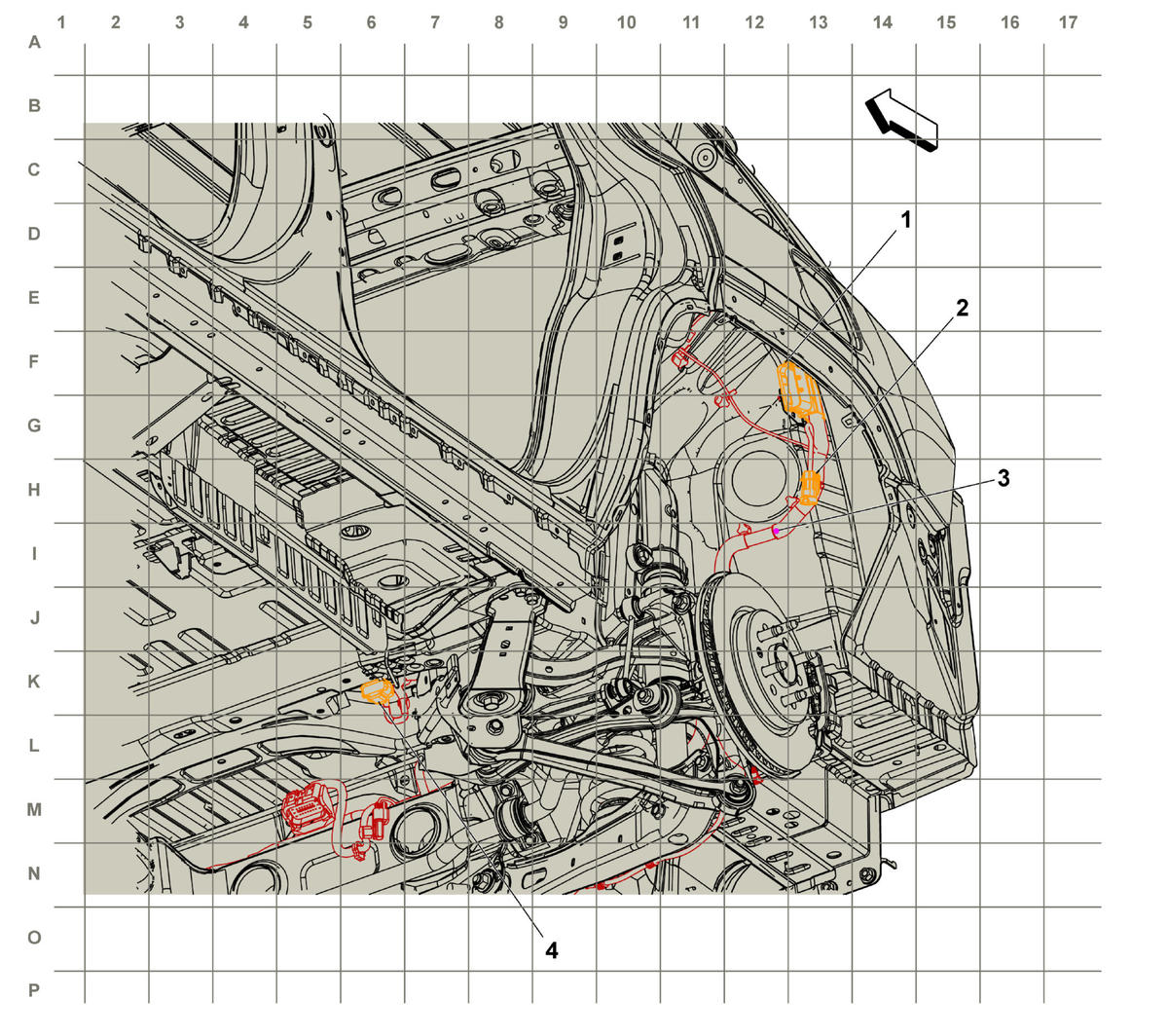

GM4341547Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. X409 Body Wiring Harness to Chassis Rear Wiring Harness X409 Body Wiring Harness to Chassis Rear Wiring Harness
2. X403 Body Wiring Harness to Chassis Rear Wiring Harness X403 Body Wiring Harness to Chassis Rear Wiring Harness
3. J405 Chassis Harness
4. X350 Chassis Rear Wiring Harness to Fuel Tank Wiring Harness X350 Chassis Rear Wiring Harness to Fuel Tank Wiring Harness
