Center Console Harness Routing
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

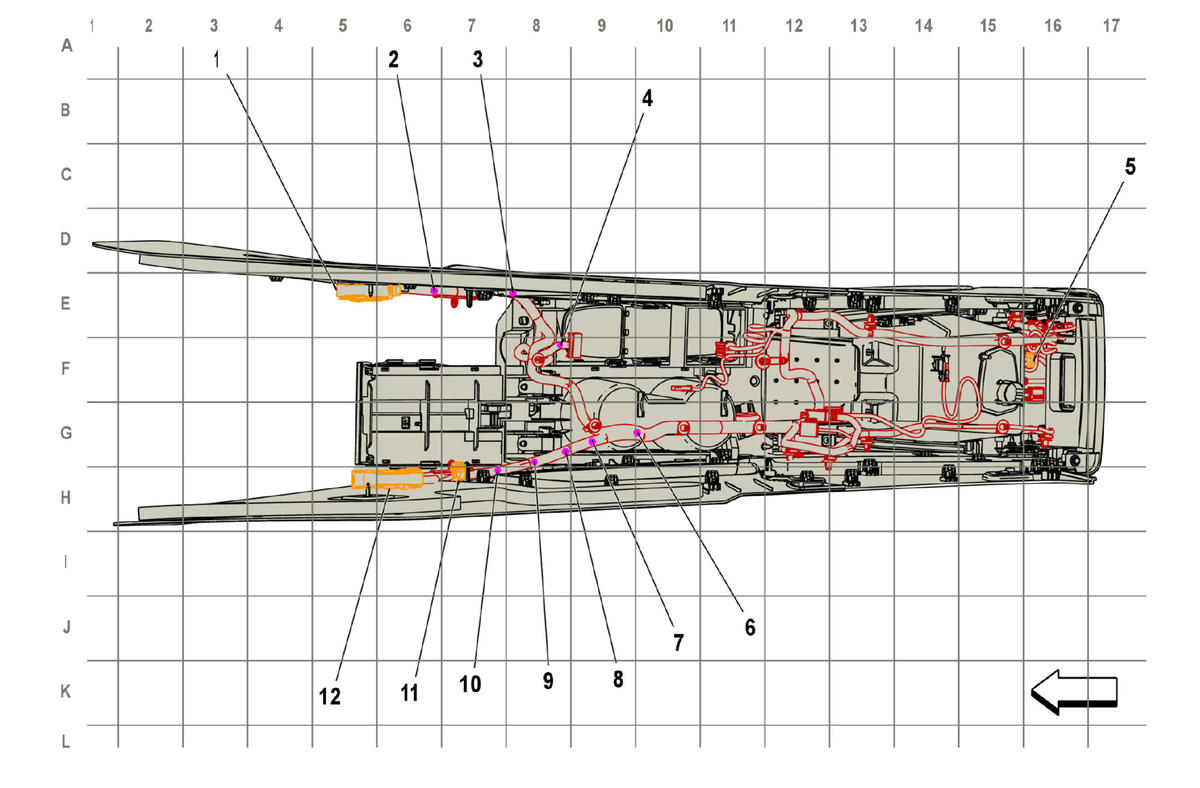

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X307 Front Floor Console Wiring Harness to Body Wiring Harness X307 Front Floor Console Wiring Harness to Body Wiring Harness |
| 2. J310 Console Harness |
| 3. J311 Console Harness (KA1) |
| 4. J316 Console Harness (UGN) |
| 5. X308 X308 Front Floor Console Wiring Harness to Rear Seat Entertainment Wiring Harness |
| 6. J315 Console Harness |
| 7. J317 Console Harness |
| 8. J308 |
| 9. J312 Console Harness (KA1) |
| 10. J313 Console Harness |
| 11. X214 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness X214 Instrument Panel Wiring Harness to Front Floor Console Wiring Harness |
