Body Harness Routing - Right Rear of Passenger Compartment
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

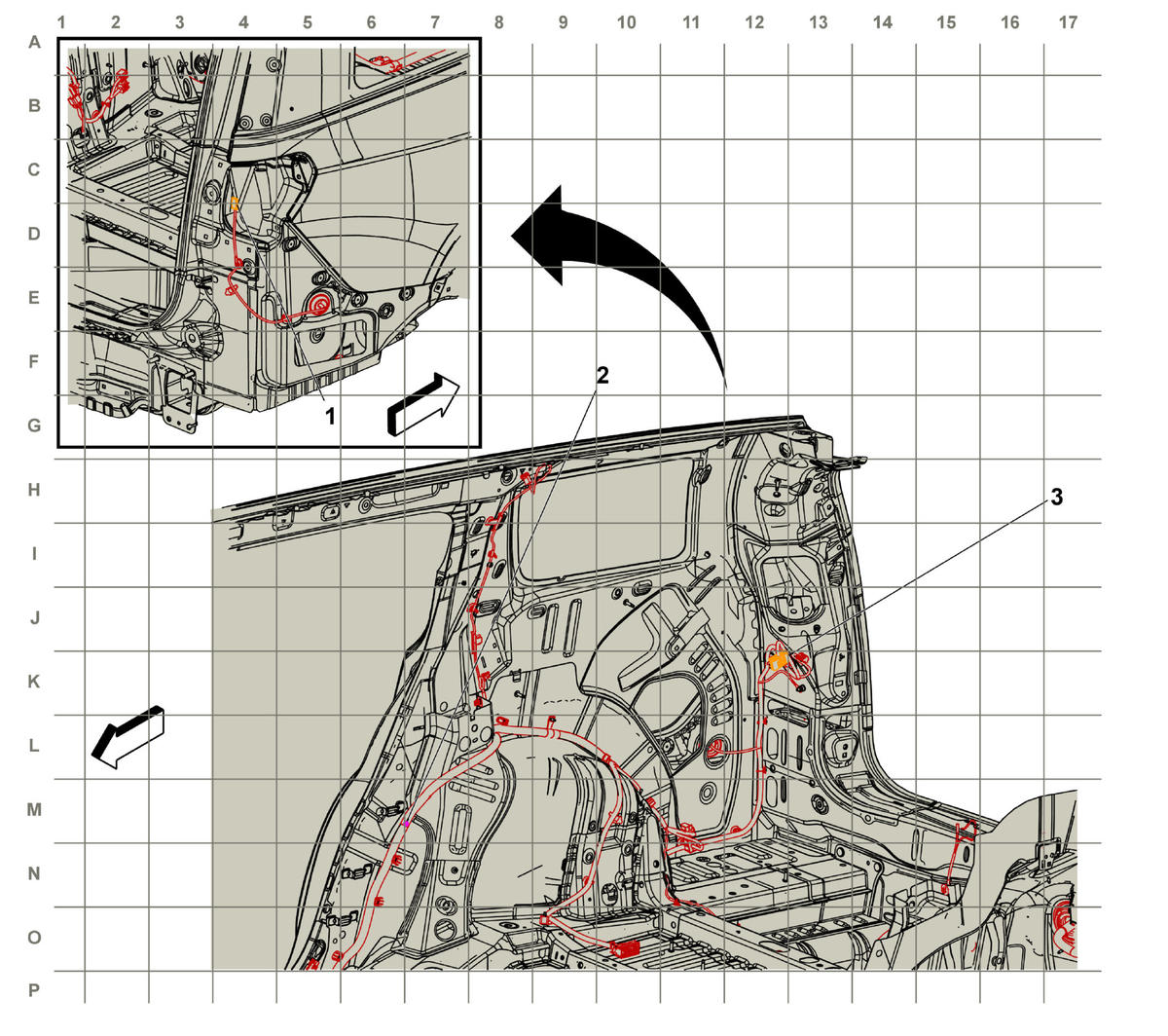

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. X420 Body Wiring Harness to Tail Lamp - Right X420 Body Wiring Harness to Tail Lamp - Right |
| 2. J345 Body Harness (F45 With F48) |
| 3. X404 Body Wiring Harness to HVAC Wiring Harness (C69) X404 Body Wiring Harness to HVAC Wiring Harness (C69) |
