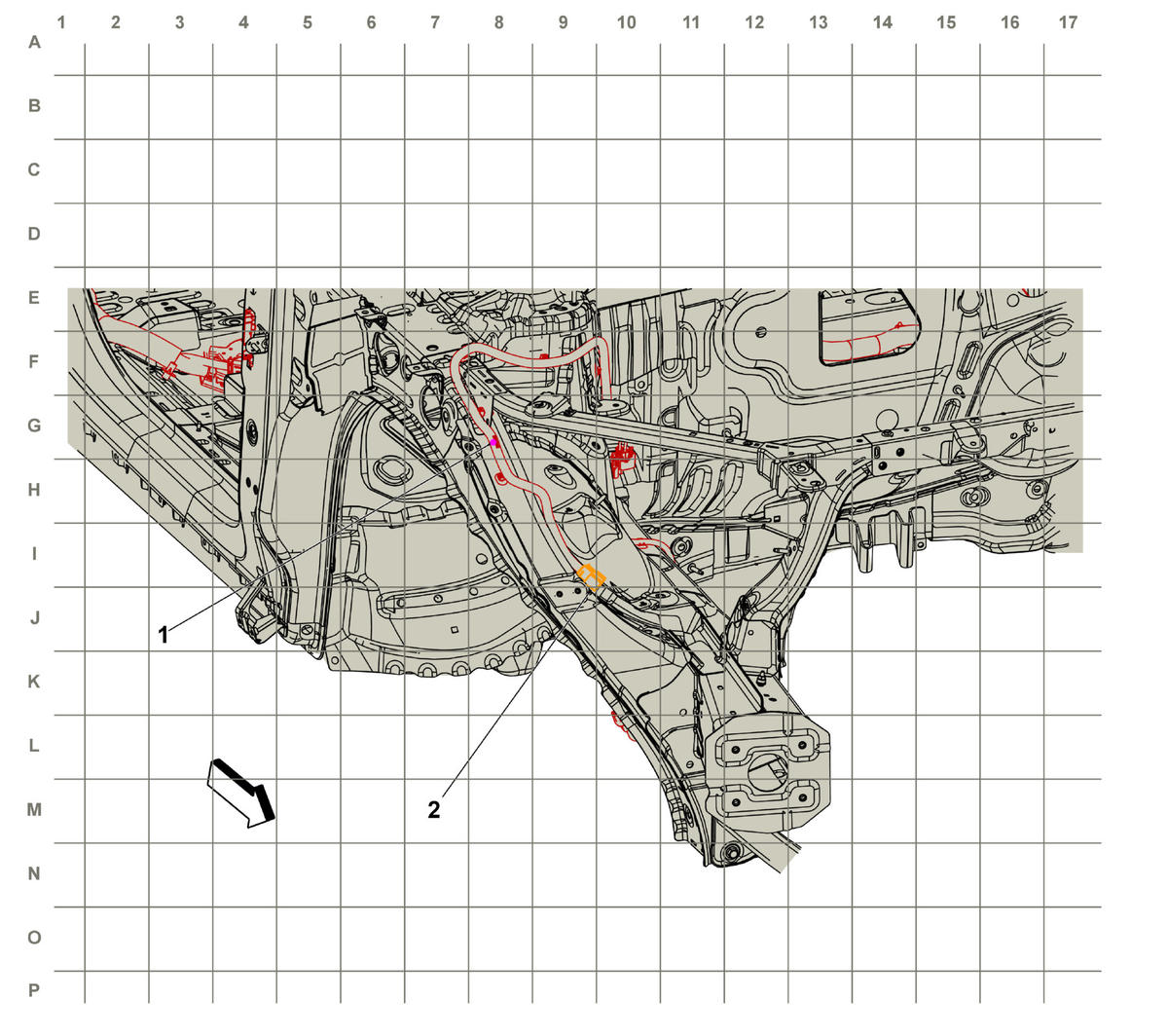

Body Harness Routing - Right Engine Compartment
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J115 |
| 2. X104 Body Wiring Harness to Forward Lamp Wiring Harness X104 Body Wiring Harness to Forward Lamp Wiring Harness |
