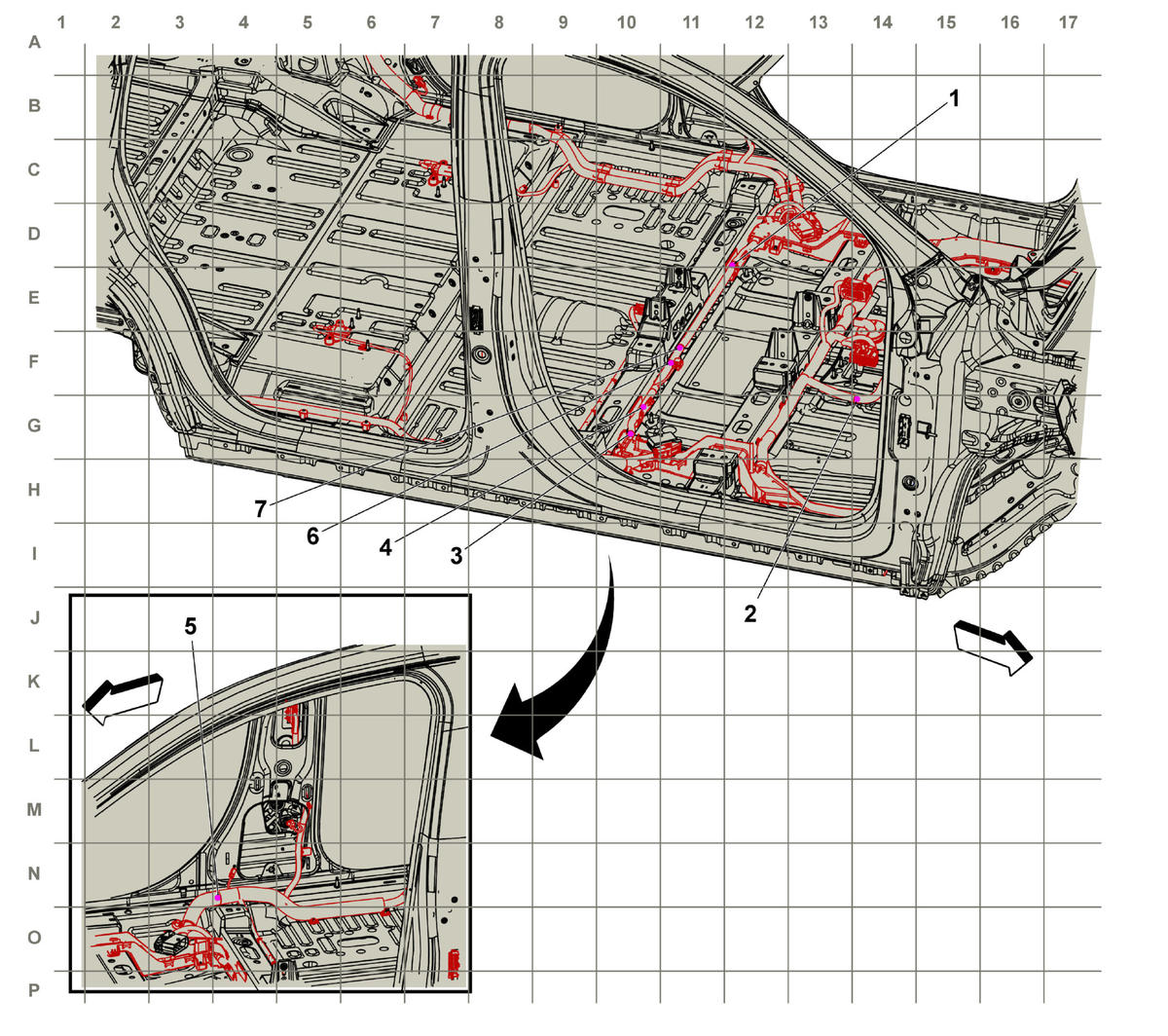

Body Harness Routing - Right Center of Passenger Compartment
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Items |
| 1. J332 Body Harness |
| 2. J321 Body Harness |
| 3. J336 Body Harness (UEU) |
| 4. J335 Body Harness |
| 5. J338 Body Harness |
| 6. J334 Body Harness |
| 7. J333 Body Harness (UQA) |
