Body Harness Routing - Left Engine Compartment
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

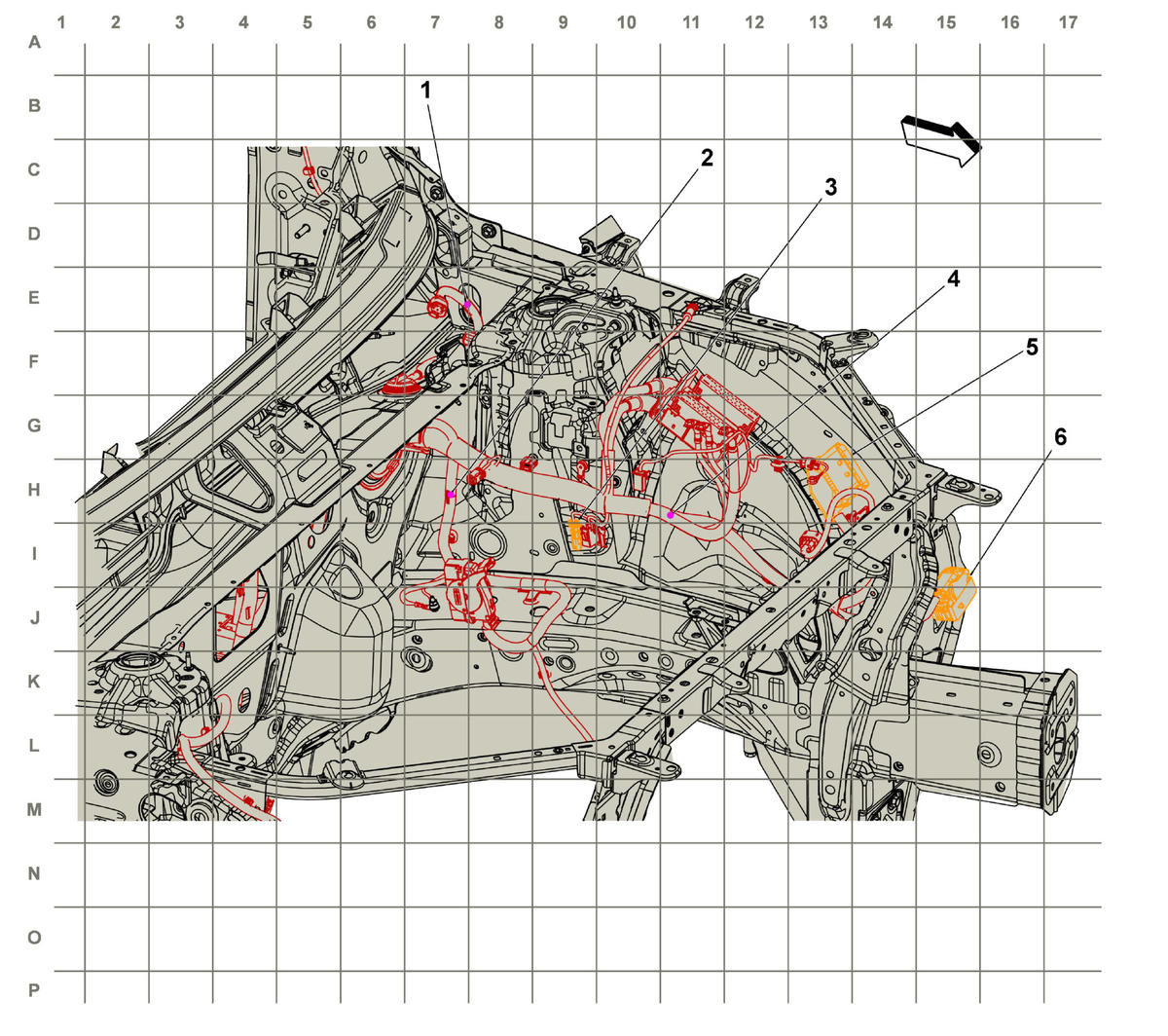

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. J134 Body Harness |
| 2. J133 Body Harness |
| 3. X107 Shock Absorber Actuator - Right Front Jumper Wiring Harness to Body Wiring Harness (F45) X107 Shock Absorber Actuator - Right Front Jumper Wiring Harness to Body Wiring Harness (F45) |
| 4. J132 Body Harness |
| 5. X112 Engine Wiring Harness to Body Wiring Harness X112 Engine Wiring Harness to Body Wiring Harness |
| 6. X101 Body Wiring Harness to Forward Lamp Wiring Harness X101 Body Wiring Harness to Forward Lamp Wiring Harness |
