Body Harness Routing - Left Center of Passenger Compartment

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

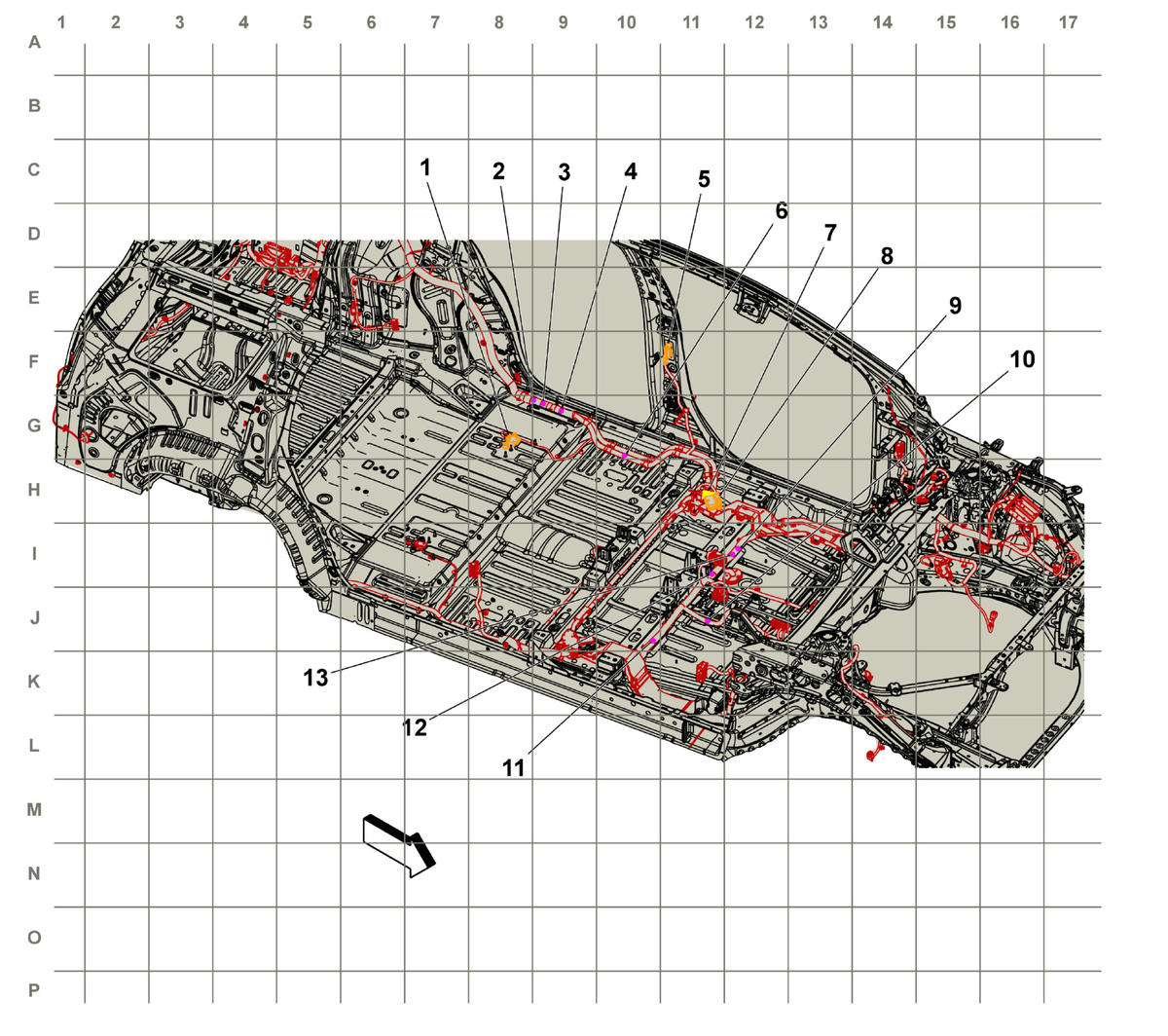

GM4341525Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. X330 Rear Seat Heater Control Wiring Harness to Body Wiring Harness X330 Rear Seat Heater Control Wiring Harness to Body Wiring Harness
2. J348 Body Harness (UGN)
3. J347 Body Harness
4. J346 Body Harness
5. X700 Rear Side Door Door Wiring Harness - Left Rear to Body Wiring Harness X700 Rear Side Door Door Wiring Harness - Left Rear to Body Wiring Harness
6. J344 Body Harness (KA6)
7. JX300 Body Harness JX300 Splice Pack
8. X310 Front Seat Wiring Harness - Driver to Body Wiring Harness X310 Front Seat Wiring Harness - Driver to Body Wiring Harness
9. J305
10. J308
11. J324 Body Harness
12. J307 Body Harness
13. J306 Body Harness
