Right Rear Wheel Well Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

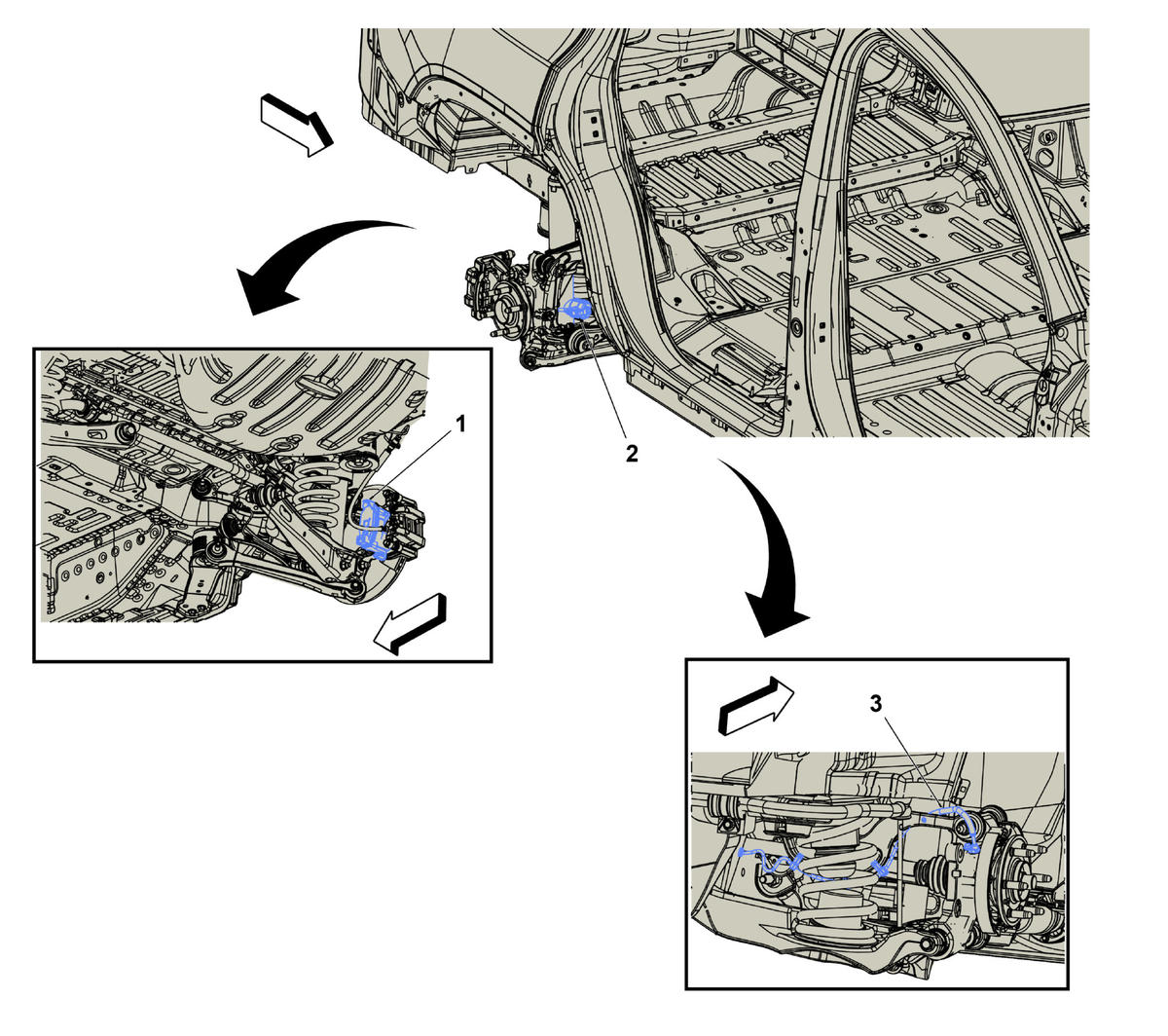

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. M104R Park Brake Actuator - Right (J77) M104R Park Brake Actuator - Right (J77) |
| 2. Q37RR Shock Absorber Actuator - Right Rear (F45) Q37RR Shock Absorber Actuator - Right Rear (F45) |
| 3. B5RR Wheel Speed Sensor - Right Rear (J61) B5RR Wheel Speed Sensor - Right Rear (J61) |
