Right Front Wheel Well Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

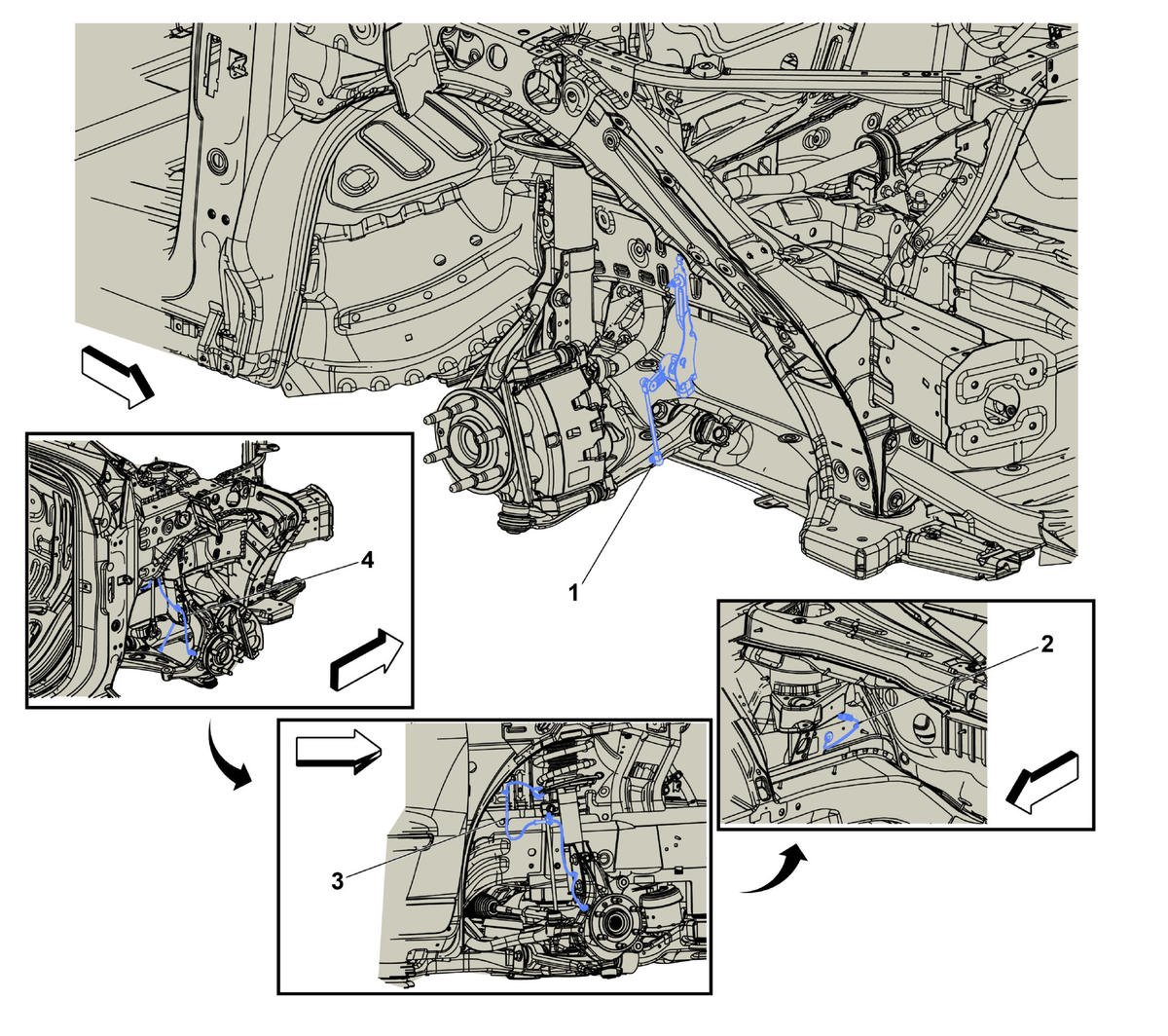

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. B161RF Vertical Suspension Acceleration Sensor - Right Front (F45) B161RF Vertical Suspension Acceleration Sensor - Right Front (F45) |
| 2. B5RF Wheel Speed Sensor - Right Front (J61) B5RF Wheel Speed Sensor - Right Front (J61) |
| 3. B5RF Wheel Speed Sensor - Right Front (J61) B5RF Wheel Speed Sensor - Right Front (J61) |
| 4. B5RF Wheel Speed Sensor - Right Front (J61) B5RF Wheel Speed Sensor - Right Front (J61) |
