Left Rear Wheel Well Components
WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

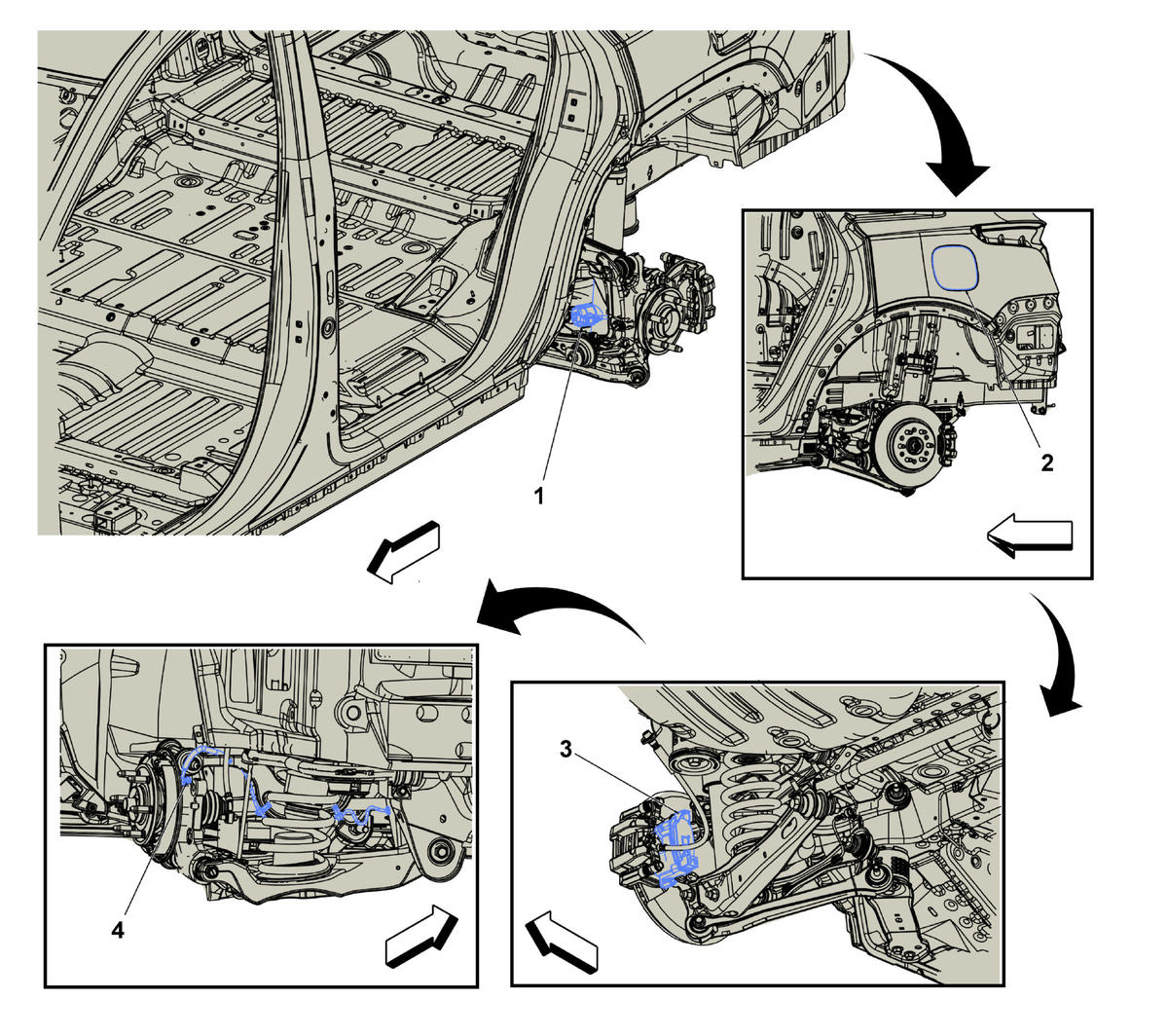

Callouts items in the following chart represent components shown in graphic above.
| Items |
|---|
| 1. Q37LR Shock Absorber Actuator - Left Rear (F45) Q37LR Shock Absorber Actuator - Left Rear (F45) |
| 2. M97 Fuel Fill Door Lock Actuator (N08) M97 Fuel Fill Door Lock Actuator (N08) |
| 3. M104L Park Brake Actuator - Left (J77) M104L Park Brake Actuator - Left (J77) |
| 4. B5LR Wheel Speed Sensor - Left Rear (J61) B5LR Wheel Speed Sensor - Left Rear (J61) |
