Fuel Tank Assembly

WARNING: This page is about a different car, the 2023 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

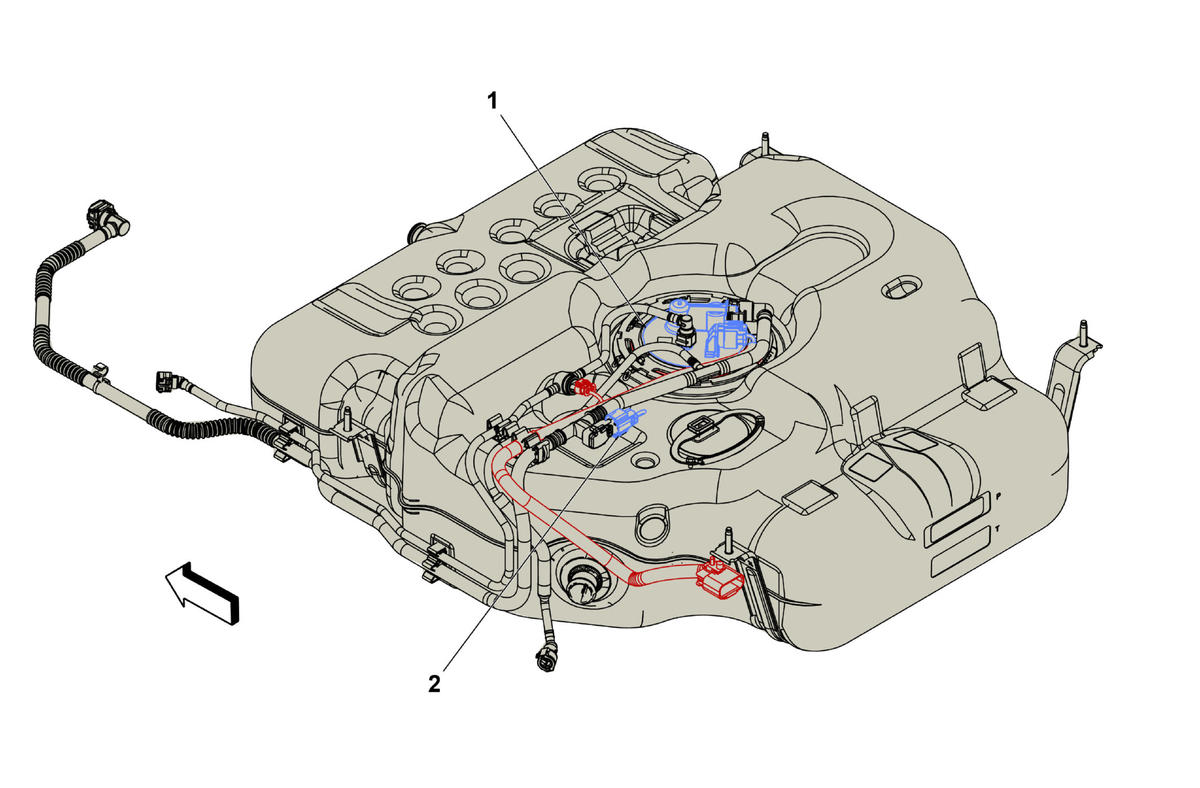

GM4341432Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Items
1. A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly
2. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor
